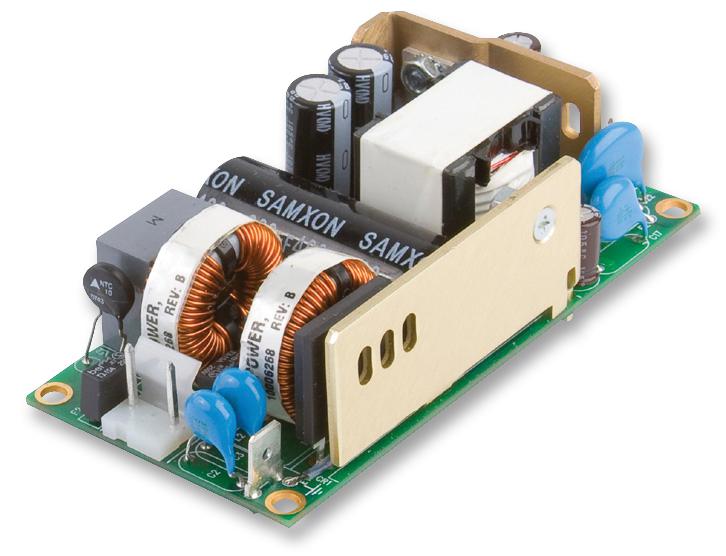

XP POWER - ECS100US28 - AC/DC Open Frame Power Supply (PSU), ITE & Medical, 1 Output, 100W @ 10CFM, 80 W
- No. of Outputs: 1 Output
- Power Rating (Covection Cooling): 80W
- Power Rating (Forced Cooling): 100W @ 10CFM
- Input Voltage VAC: 80V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Output Voltage - Output 1: 28V
- Output Current - Output 1: 3.6A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: ECS100 Series
- SVHC: No SVHC (15-Jan-2018)
- Approvals / Standards: CSA 22.2 No. 60601, EN 60601, IEC 60601, UL 60601
- Height: 30.5mm
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 80V
- Input Voltage DC Max: 370VDC
- Input Voltage DC Min: 120VDC
- Length: 50.8mm
- No. of Outputs: 1Outputs
- Output Current Max: 3.6A
- Output Power Max: 80W
- Power Rating: 100W
- Power Supply Type: Open Frame
- Supply Voltage Typ: 110V AC, 230V AC
- Width: 101.6mm
