EE2-3SNU-L RELAY, SIGNAL, DPDT, 250VAC, 220VDC, 2A KEMET

KEMETUGS :EE2-3SNU-L Code de commande:2360804

Prix:
Prix ​​promotionnel€5,04

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (167 unité)

Documents et téléchargements

description

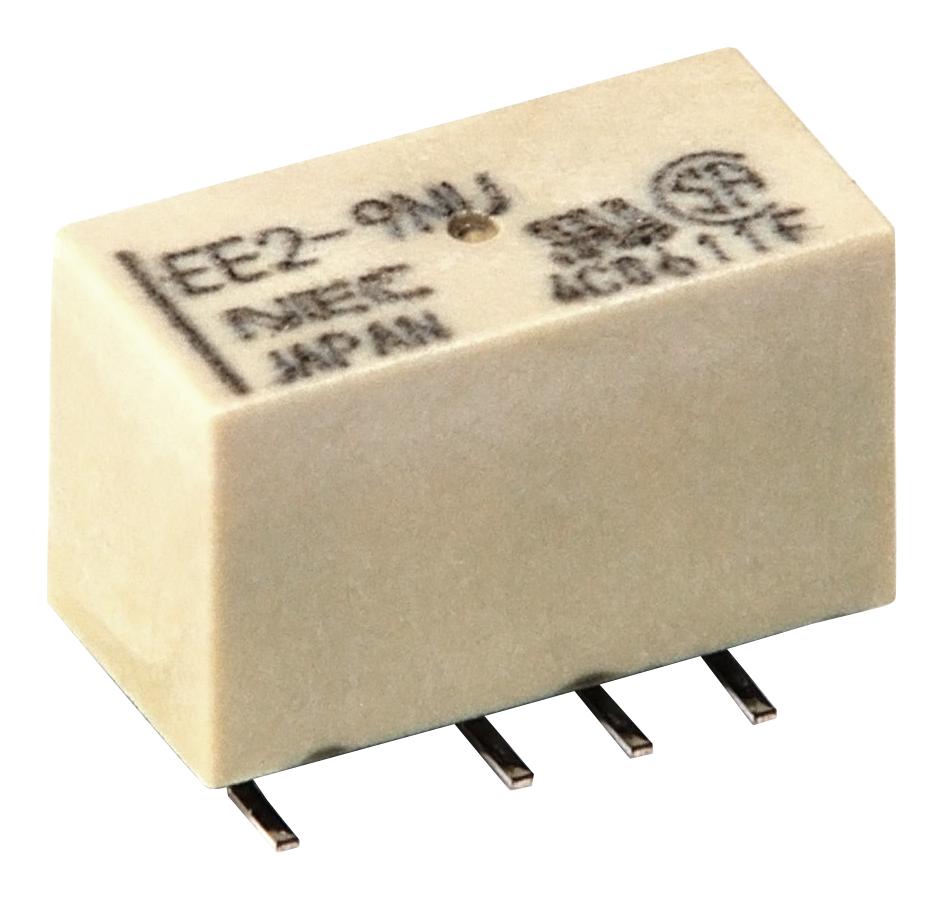

KEMET - EE2-3SNU-L - Signal Relay, 3 VDC, DPDT, 2 A, EC2 & EE2 Series, Surface Mount, Latching Single Coil

  • Coil Voltage: 3VDC
  • Contact Configuration: DPDT
  • Contact Current: 2A
  • Product Range: EC2 & EE2 Series
  • Relay Mounting: SMD
  • Coil Type: Latching Single Coil
  • Relay Terminals: Solder
  • Contact Voltage VAC: 250V
  • Contact Voltage VDC: 220V
  • Contact Material: Silver Alloy
  • Coil Resistance: 90ohm
  • SVHC: No SVHC (15-Jan-2018)
  • Coil Power Continuous: 100mW
  • Coil Voltage VDC Nom: 3V
  • Contact Current Max: 2A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 220V
  • External Depth: 15mm
  • External Height: 10mm
  • External Width: 7.5mm
