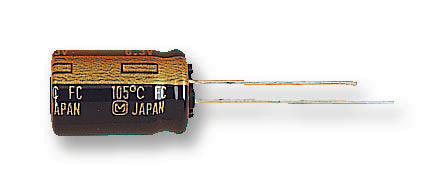

PANASONIC - EEUFC1J181S - Electrolytic Capacitor, 180 µF, 63 V, ± 20%, Radial Leaded, 5000 hours @ 105°C, Polar
- Capacitance: 180µF
- Voltage Rating: 63V
- Product Range: FC Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 12.5mm
- Lead Spacing: 5mm
- Height: 15mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Lifetime @ Temperature: 5000 hours @ 105°C
- ESR: -
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 20%
- Impedance: 0.15ohm
- Lead Diameter: 0.6mm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +105°C
- Operating life Time: 5000h
- Ripple Current AC: 1020mA
