EEUFK0J681 Cap, 680µF, 6.3V, 20% Panasonic

PANASONICUGS :EEUFK0J681 Code de commande:1744868

Prix:
Prix ​​promotionnel€0,43

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3396 unité)

Documents et téléchargements

description

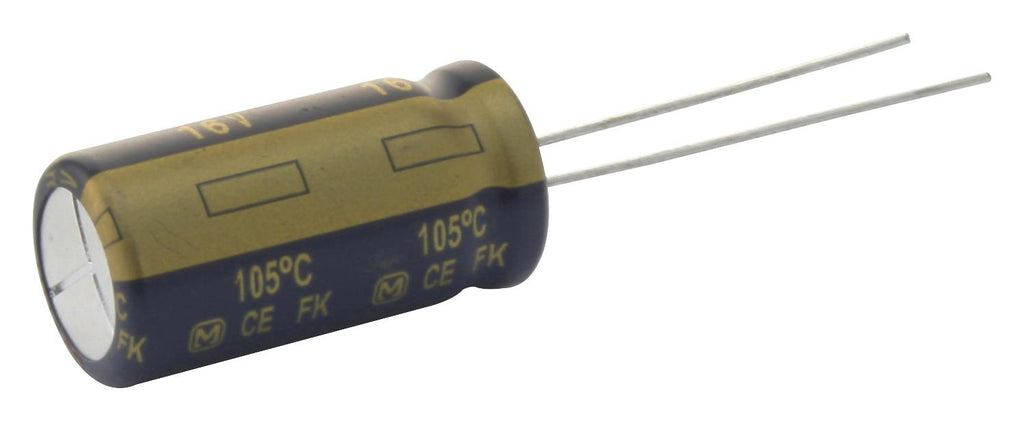

PANASONIC - EEUFK0J681 - Electrolytic Capacitor, 680 µF, 6.3 V, ± 20%, Radial Leaded, 3000 hours @ 105°C, Polar

  • Capacitance: 680µF
  • Voltage Rating: 6.3V
  • Product Range: FK Series
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Radial Leaded
  • Diameter: 8mm
  • Lead Spacing: 3.5mm
  • Height: 11.5mm
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 105°C
  • Lifetime @ Temperature: 3000 hours @ 105°C
  • ESR: -
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Capacitance Tolerance ±: ± 20%
  • External Length / Height: 11.5mm
  • Impedance: 0.09ohm
  • Impedance Frequency: 100kHz
  • Impedance Temperature: 20°C
  • Lead Diameter: 0.6mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -55°C to +105°C
  • Ripple Current @ 105°C to 125°C: 630mA
  • Ripple Current Frequency: 100kHz
  • Ripple Current Temperature: 105°C
