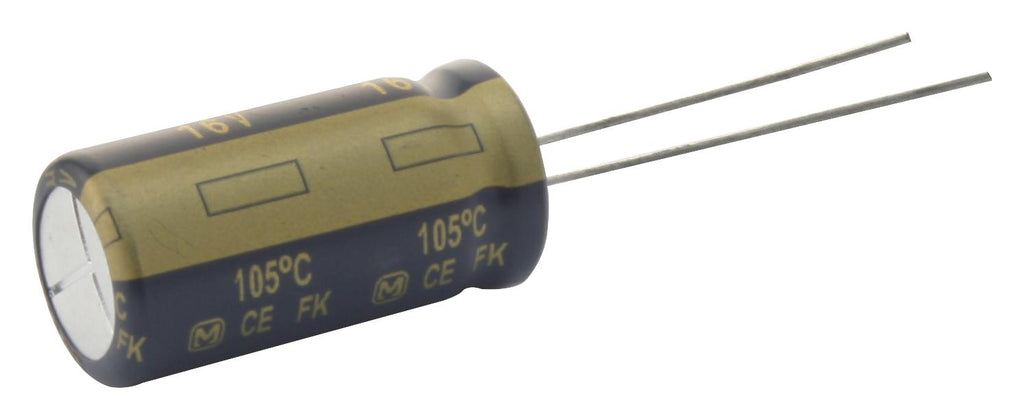

PANASONIC - EEUFK1C122 - Electrolytic Capacitor, 1200 µF, 16 V, ± 20%, Radial Leaded, 4000 hours @ 105°C, Polar
- Capacitance: 1200µF
- Voltage Rating: 16V
- Product Range: FK Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 10mm
- Lead Spacing: 5mm
- Height: 20mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Lifetime @ Temperature: 4000 hours @ 105°C
- ESR: -
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 20%
- External Length / Height: 20mm
- Impedance: 0.035ohm
- Impedance Frequency: 100kHz
- Impedance Temperature: 20°C
- Lead Diameter: 0.6mm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +105°C
- Ripple Current @ 105°C to 125°C: 1490mA
- Ripple Current Frequency: 100kHz
- Ripple Current Temperature: 105°C
