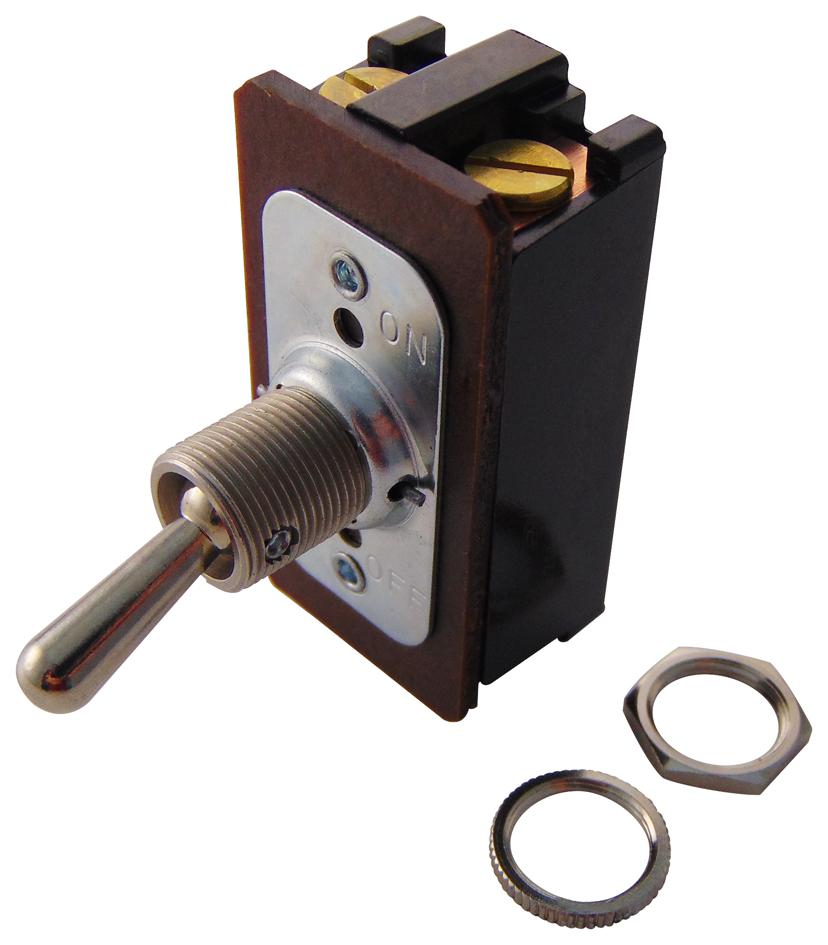

EK204-73 Switch, DPST Carling

CARLINGUGS :EK204-73 Code de commande:1203335

Prix:
Prix ​​promotionnel€40,60

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (67 unité)

Documents et téléchargements

description

CARLING - EK204-73 - Toggle Switch, On-Off, DPST, Non Illuminated, EK, Panel Mount, 20 A

  • Switch Operation: On-Off
  • Contact Configuration: DPST
  • Illumination: Non Illuminated
  • Product Range: EK Series
  • Contact Current Max: 20A
  • Switch Mounting: Panel
  • Contact Voltage AC Nom: 125V
  • Switch Terminals: Screw
  • Contact Voltage DC Nom: 125V
  • SVHC: No SVHC (27-Jun-2018)
  • Actuation Type: Bat
  • Approval Bodies: CSA
  • Approval Category: UL Recognised
  • Bush Thread Length: 11.9mm
  • Contact Current @ Contact Voltage AC Max: 10A
  • Contact Current @ Contact Voltage DC Max: 20A
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 10A
  • Contact Voltage AC Max: 250VAC
  • Contact Voltage DC Max: 250VDC
  • External Depth: 22.2mm
  • External Length / Height: 54mm
  • External Width: 25.4mm
  • Height: 54mm
  • Lever Length: 16.7mm
  • Operating Temperature Max: 65.6°C
  • Operating Temperature Min: -17.8°C
  • Panel Cutout Diameter: 12.7mm
  • Termination Method: Screw
  • Thread Size: 15/32" x 32 NS
