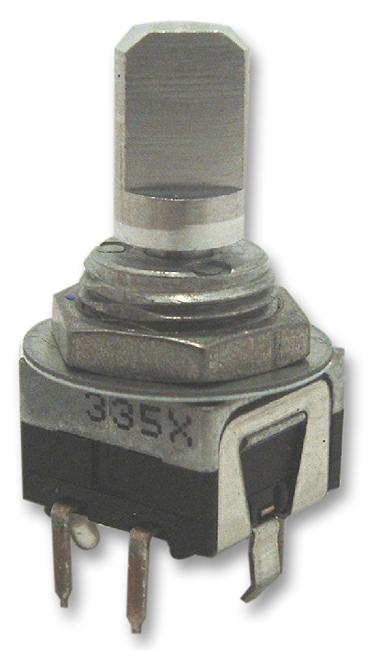

ALPS ALPINE - EM11B16140A4 - Rotary Encoder, Magnetic, Incremental, 16 PPR, 16 Detents, Vertical, With Push Switch
- Supply Voltage Min: -
- Supply Voltage Max: 5V
- No. of Channels: 2Channels
- Rotational Speed Max: -
- Product Range: -
- SVHC: No SVHC (20-Jun-2016)
- Connector Type: Pin
- Encoder Resolution: 16
- External Depth: 10.8mm
- External Length / Height: 7.5mm
- External Width: 11mm
- Insulation Resistance: 100Mohm
- No. of Detents: 16
- No. of Pulses Per Revolution: 16
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Operating Temperature Range: -30°C to +85°C
- Pulse Output Count: 16
- Rotational Life Cycles: 1000000
- Shaft Diameter: 6mm
- Shaft Length: 7mm
- Supply Voltage Range: 4.75V to 5.25V
- Supply Voltage V DC: 5V
- Torque: 10mN-m
- Type: Incremental Encoder
