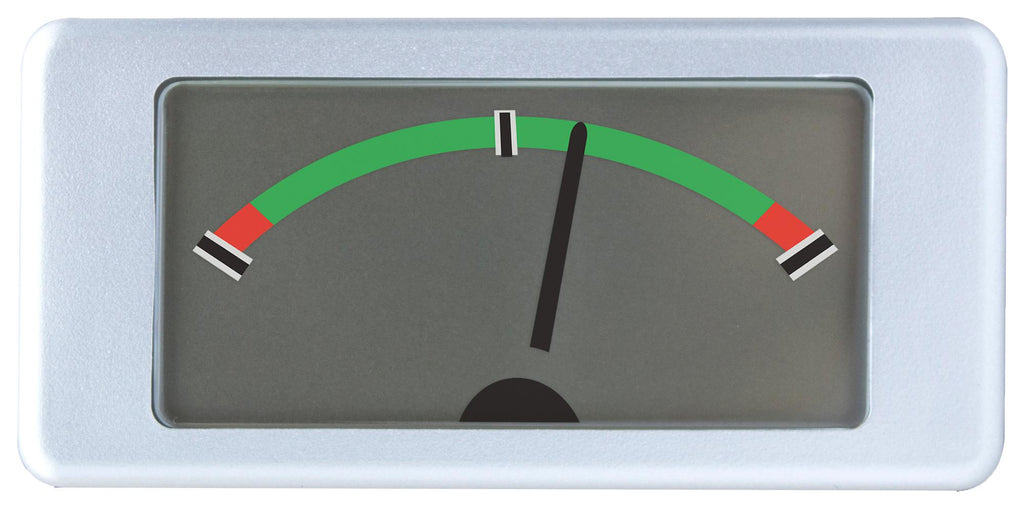

LASCAR - EMA 1710 - Analogue Panel Meter, 9 Segment LCD, No Calibration Required, DC Voltage, 0V to 1V, 13.97 mm
- Meter Function: DC Voltage
- Meter Range: 0V to 1V
- Panel Cutout Height: 13.97mm
- Panel Cutout Width: 30.99mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Accuracy: 1 segment ± 1 (typical)
- Display Size: 31mm x 14mm
- Display Technology: LCD
- External Depth: 5.5mm
- External Length / Height: 21.4mm
- External Width: 43.5mm
- Meter Size/Dimensions: 21mm x 44mm
- Operating Temperature Max: 50°C
- Operating Temperature Min: 0°C
- Operating Temperature Range: 0°C to +50°C
- Resolution: 125mV
- Supply Current: 6mA
- Supply Voltage Max: 12V
- Supply Voltage Min: 5V
- Supply Voltage Range: 5V to 12V
