EMV 1125 DPM, Lcd, 3.5DIGIT Lascar

LASCARUGS :EMV 1125 Code de commande:9932690

Prix:
Prix ​​promotionnel€63,62

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (18 unité)

Documents et téléchargements

description

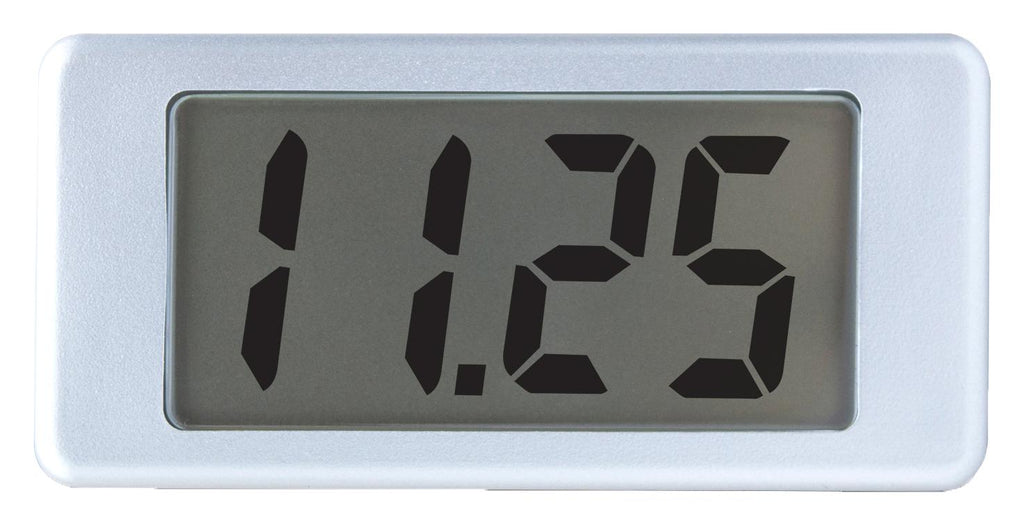

LASCAR - EMV 1125 - Digital Panel Meter, 3-1/2 Digits, DC Voltage, 0mV to 200mV

  • No. of Digits / Alpha: 3-1/2
  • Meter Function: DC Voltage
  • Meter Range: 0mV to 200mV
  • Digit Height: 12.5mm
  • Panel Cutout Height: -
  • Panel Cutout Width: -
  • Supply Voltage Min: 7.5V
  • Supply Voltage Max: 15V
  • Operating Temperature Min: 0°C
  • Operating Temperature Max: 50°C
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Accuracy %: 0.05%
  • Display Area Height: 12.5mm
  • Display Technology: LCD
  • External Depth: 5.5mm
  • External Length / Height: 21.4mm
  • External Width: 43.5mm
  • Linearity, +: 1%
  • Linearity, -: 1%
  • Operating Temperature Range: 0°C to +50°C
  • Resolution: 0.1mV
  • Supply Current: 150µA
  • Temperature Stability + @: 100ppm
