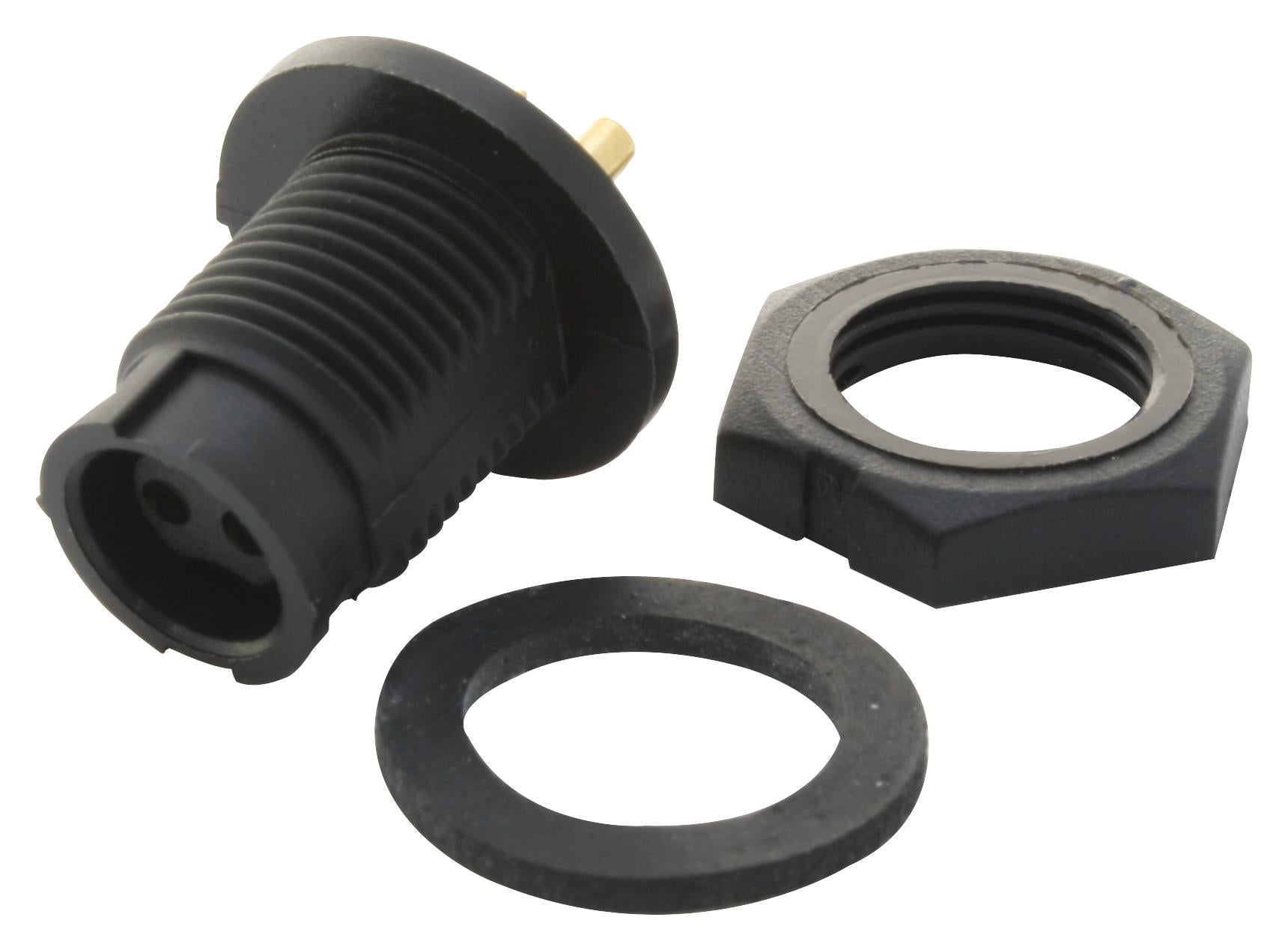

SWITCHCRAFT/CONXALL - EN3172822SG300 - Circular Connector, EN3 Series, Panel Mount Receptacle, 2 Contacts, Screw Socket, Bayonet
- Product Range: EN3 Series
- Circular Connector Shell Style: Panel Mount Receptacle
- No. of Contacts: 2Contacts
- Circular Contact Type: Screw Socket
- Coupling Style: Bayonet
- Connector Body Material: Thermoplastic, Glass Filled Body
- Connector Body Plating: -
- Contact Material: Copper Alloy
- Contact Plating: Gold
- SVHC: No SVHC (15-Jan-2018)
- Connector Insert Type: 2-20
- Connector Mounting: Panel Mount
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Plating: Gold Plated Contacts
- Contact Termination: Screw
- Contact Termination Type: Screw
- Current Rating: 7.5A
- Gender: Receptacle
- IP / NEMA Rating: IP67
- No. of Mating Cycles: 300
- Operating Temperature Max: 115°C
- Operating Temperature Min: -40°C
- Wire Size AWG Max: 20AWG
- Wire Size AWG Min: 24AWG
- Working Voltage: 600V
