description

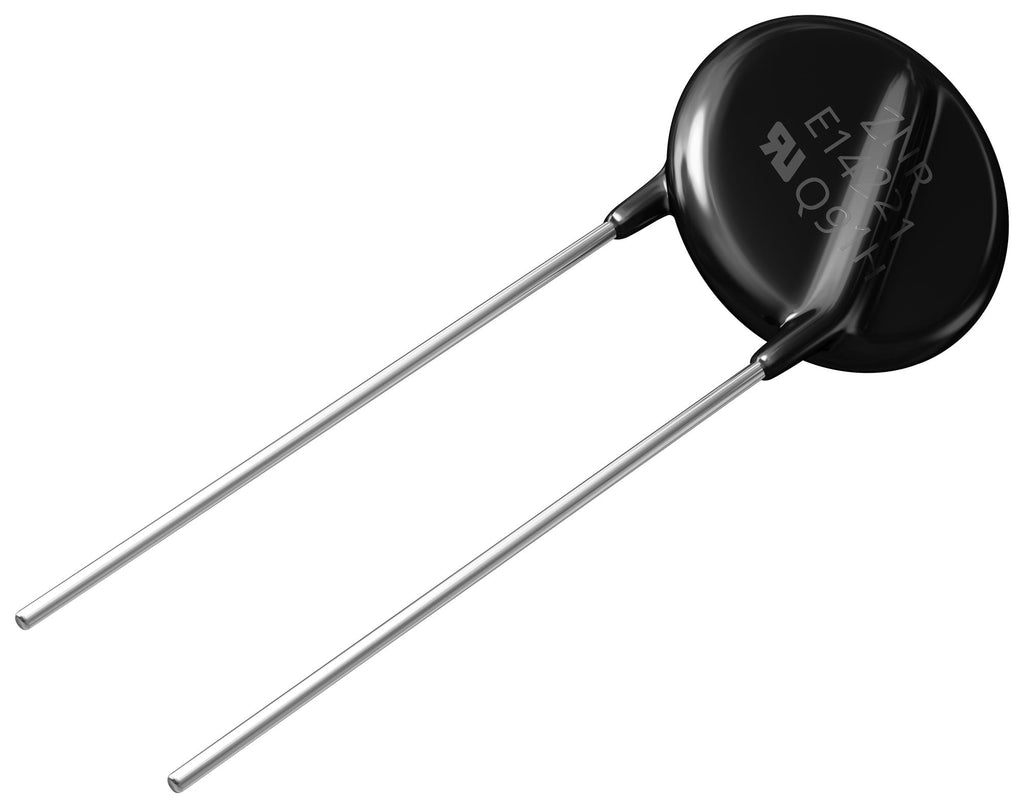

PANASONIC - ERZE14A561S1 - TVS Varistor, 350 V, 450 V, E14-S1, 930 V, Disc 16.5mm, Zinc Oxide Non-Linear Resistor (ZNR)
- Voltage Rating VAC: 350V
- Voltage Rating V DC: 450V
- Product Range: E14-S1 Series
- Clamping Voltage Vc Max: 930V
- Varistor Case Style: Disc 16.5mm
- Varistor Type: Zinc Oxide Non-Linear Resistor (ZNR)
- Peak Surge Current @ 8/20µs: 10kA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Peak Energy (10/1000uS): 382J
- Automotive Qualification Standard: -
