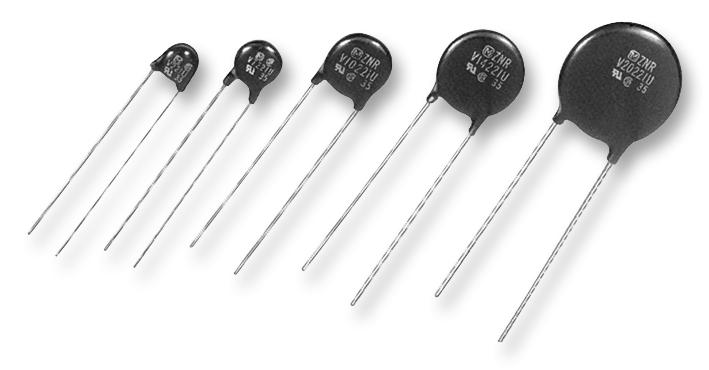

PANASONIC - ERZV10D241 - TVS Varistor, 150 V, 200 V, ZNR V, 395 V, Disc 10mm, Zinc Oxide Non-Linear Resistor (ZNR)
- Voltage Rating VAC: 150V
- Voltage Rating V DC: 200V
- Product Range: ZNR V Series
- Clamping Voltage Vc Max: 395V
- Varistor Case Style: Disc 10mm
- Varistor Type: High Surge Current
- Peak Surge Current @ 8/20µs: 3.5kA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 42J
- Automotive Qualification Standard: -
- SVHC: No SVHC (12-Jan-2017)
- Clamping Voltage: 395V
- Operating Temperature Range: -40°C to +85°C
- Suppressor Type: Absorber
- Surge Current: 3.5kA
- Varistor Voltage @ 1mA: 240V
