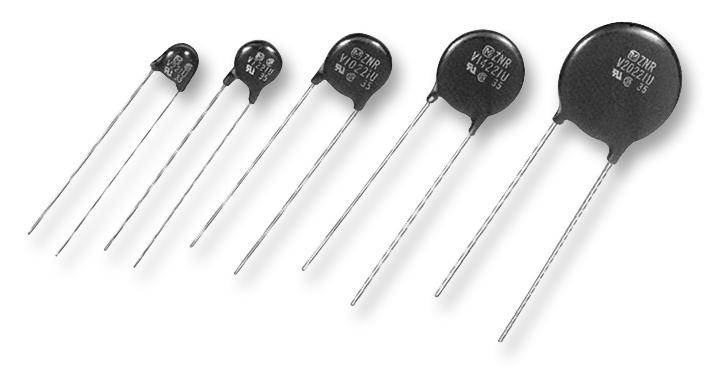

PANASONIC - ERZV14D471 - TVS Varistor, 300 V, 385 V, ZNR V, 775 V, Disc 14mm, Zinc Oxide Non-Linear Resistor (ZNR)
- Voltage Rating VAC: 300V
- Voltage Rating V DC: 385V
- Product Range: ZNR V Series
- Clamping Voltage Vc Max: 775V
- Varistor Case Style: Disc 14mm
- Varistor Type: Zinc Oxide Non-Linear Resistor (ZNR)
- Peak Surge Current @ 8/20µs: 6kA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 175J
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Clamping Voltage: 775V
- Operating Temperature Range: -40°C to +85°C
- Suppressor Type: Absorber
- Surge Current: 6kA
- Varistor Voltage @ 1mA: 470V
