ET01MD1AVBE Switch, Pcb, SPDT C&K Components

C&K COMPONENTSUGS :ET01MD1AVBE Code de commande:9574638

Prix:
Prix ​​promotionnel€16,64

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (56 unité)

Documents et téléchargements

description

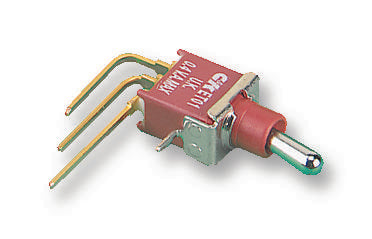

C&K COMPONENTS - ET01MD1AVBE - Toggle Switch, On-On, SPDT, Non Illuminated, ET, Through Hole

  • Switch Operation: On-On
  • Contact Configuration: SPDT
  • Illumination: Non Illuminated
  • Product Range: ET Series
  • Contact Current Max: -
  • Switch Mounting: Through Hole
  • Contact Voltage AC Nom: 20V
  • Switch Terminals: Solder
  • Contact Voltage DC Nom: 20V
  • SVHC: Lead (15-Jan-2019)
  • Actuation Type: Lever
  • Bush Thread Length: 4.5mm
  • Contact Current @ Contact Voltage AC Max: 20mA
  • Contact Current @ Contact Voltage DC Max: 20mA
  • Contact Resistance: 10mohm
  • Contact Voltage AC Max: 20V
  • Contact Voltage DC Max: 20V
  • External Depth: 14.3mm
  • External Length / Height: 8.13mm
  • External Width: 6.22mm
  • Height: 8.13mm
  • No. of Electrical Operations: 40000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Switching Power Max: 0.4VA
