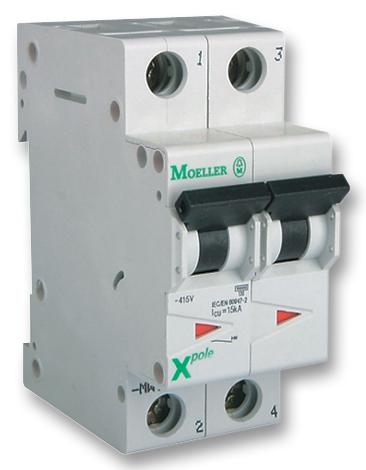

FAZ-C10/2 CIRCUIT BREAKER, 10A, 2POLE EATON MOELLER

EATON MOELLERUGS :FAZ-C10/2 Code de commande:1205453

Prix:
Prix ​​promotionnel€136,15

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (29 unité)

Documents et téléchargements

description

EATON MOELLER - FAZ-C10/2 - Thermal Magnetic Circuit Breaker, FAZ, 10 A, 2 Pole, 48 VDC, 415 VAC, DIN Rail

  • Product Range: FAZ Series
  • Current Rating: 10A
  • No. of Poles: 2 Pole
  • Voltage Rating V DC: 48VDC
  • Voltage Rating VAC: 415VAC
  • Circuit Breaker Mounting: DIN Rail
  • SVHC: No SVHC (17-Dec-2015)
  • Breaking Capacity Current AC: 15kA
  • Cross-section Area Max: 25mm²
  • External Depth: 71mm
  • External Length / Height: 80mm
  • External Width: 35mm
  • IP / NEMA Rating: IP20
  • No. of Electrical Operations: 10000
  • No. of Mechanical Operations: 10000
  • Tripping Characteristic: C
