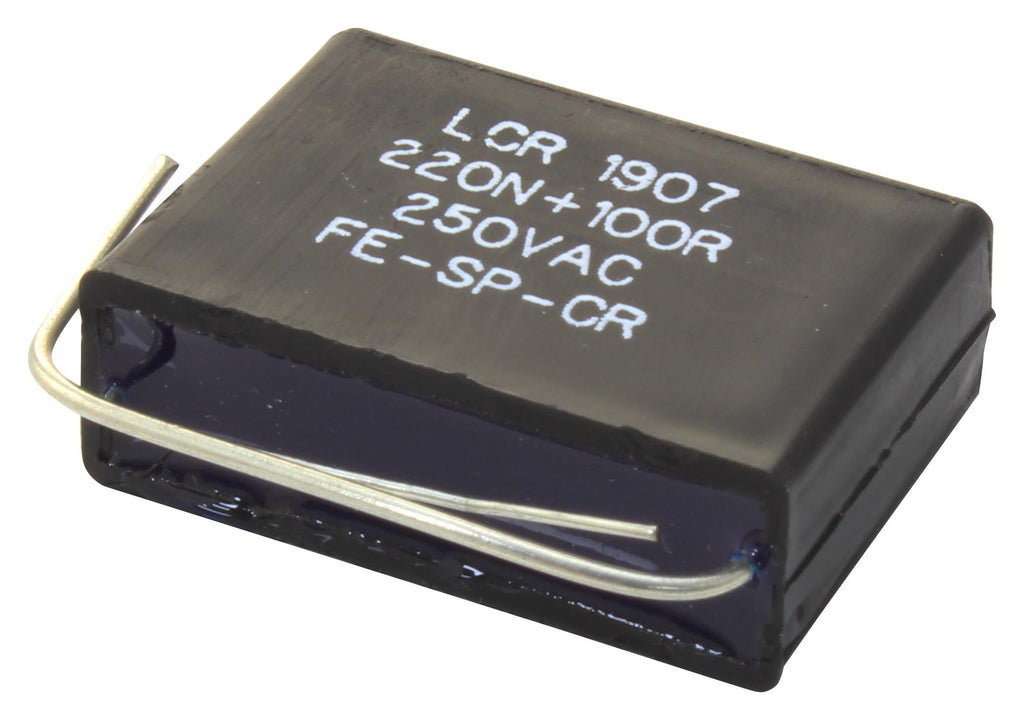

LCR COMPONENTS - FE-SP-CR23-220/100 - Safety Capacitor, Radial Box - 2 Pin, 0.22 µF, ± 10%, X2, Through Hole
- Capacitance: 0.22µF
- Suppression Class: X2
- Product Range: FE-SP-CR Series
- Voltage Rating X: 250V
- Voltage Rating Y: -
- Capacitor Dielectric Type: -
- Capacitance Tolerance: ± 10%
- dv/dt Rating: -
- Capacitor Case Style: -
- Capacitor Terminals: Radial Leaded
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (20-Jun-2016)
- Capacitance Tolerance +: 10%
- Capacitance Tolerance -: 10%
- Connector Type: Wire Leaded
- Control Voltage AC Max: 250V
- External Depth: 18.5mm
- External Length / Height: 25mm
- External Width: 9mm
- Lead Length: 20mm
- Lead Spacing: 22.5mm
- Resistance: 100ohm
- Resistance Tolerance +: 10%
- Resistance Tolerance -: 10%
- Suppressor Type: Mains
- Voltage Rating: 250VAC
- Voltage Rating VAC: 250V
