FFSD-10-D-12.00-01-N Cable ASSY, IDC Rcpt-Rcpt, 20P, 304.8mm Samtec

SAMTECUGS :FFSD-10-D-12.00-01-N Code de commande:1667663

Prix:
Prix ​​promotionnel€20,94

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (49 unité)

Documents et téléchargements

description

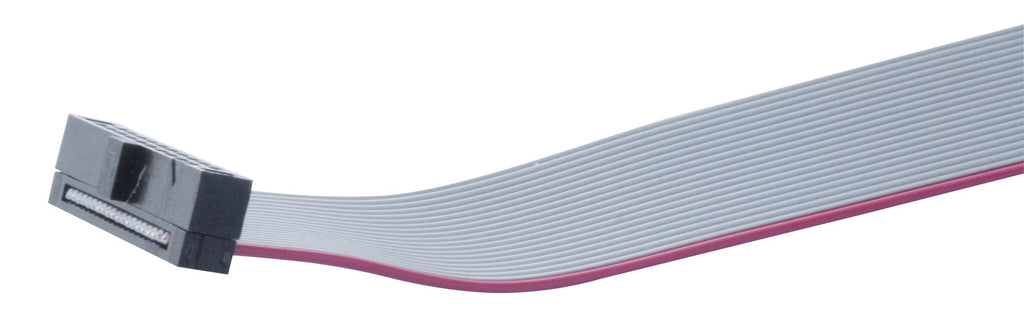

SAMTEC - FFSD-10-D-12.00-01-N - Ribbon Cable, IDC Receptacle to IDC Receptacle, 20 Ways, 12 ", 304.8 mm, 1.27 mm, Tiger Eye FFSD

  • Connector to Connector: IDC Receptacle to IDC Receptacle
  • No. of Positions: 20Ways
  • Cable Length - Imperial: 12"
  • Cable Length - Metric: 304.8mm
  • Connector Pitch: 1.27mm
  • Cable Pitch: 0.635mm
  • Product Range: Tiger Eye FFSD Series
  • SVHC: No SVHC (15-Jan-2018)
  • Cable Length: 304.8mm
  • Colour: Grey
  • Connector A Contact Material: Beryllium Copper
  • Connector A Contact Plating: Gold
  • Connector B Contact Material: Beryllium Copper
  • Connector B Contact Plating: Gold
  • Connector Type A: IDC Receptacle
  • Connector Type B: IDC Receptacle
  • Jacket Colour: Grey
  • Material: PBT
  • No. of Cores: 20Core
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Pitch Spacing: 1.27mm
