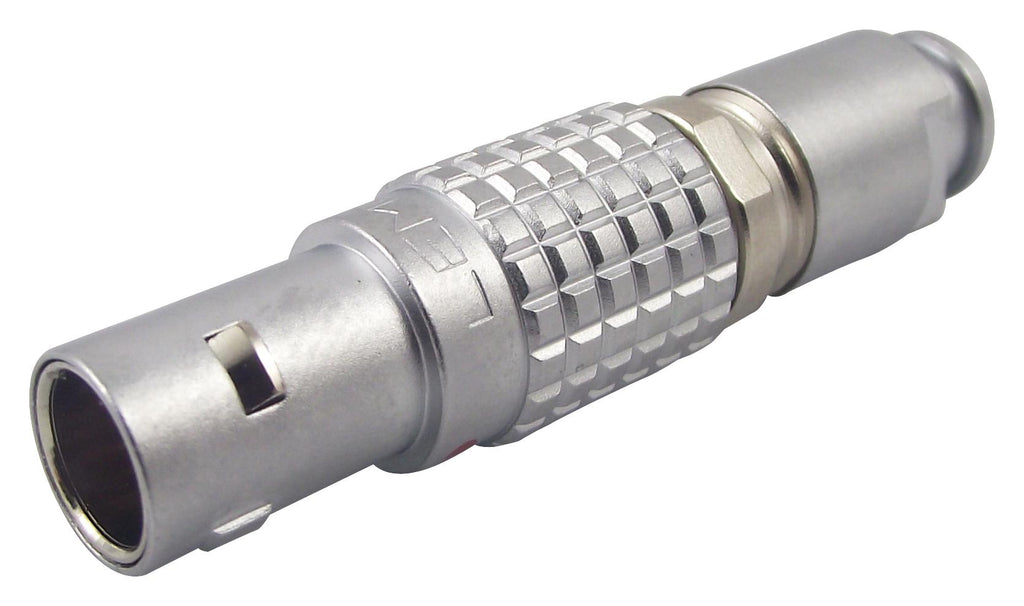

LEMO - FGG.0B.305.CLAD52Z - Circular Connector, 0B Series, Cable Mount Plug, 5 Contacts, Solder Pin, Push-Pull, Brass Body
- Product Range: 0B Series
- Circular Connector Shell Style: Cable Mount Plug
- No. of Contacts: 5Contacts
- Circular Contact Type: Solder Pin
- Coupling Style: Push-Pull
- Connector Body Material: Brass Body
- Connector Body Plating: Chrome
- Contact Material: Brass
- Contact Plating: Gold
- SVHC: No SVHC (07-Jul-2017)
- Body Plating: Nickel
- Connector Mounting: Cable Mount
- Connector Shell Size: 0
- Connector Type: Circular Industrial
- Contact Gender: Pin
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 5.6mohm
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 6.5A
- Dielectric Strength: 19V/m
- Female Contact Material: Bronze
- Gender: Plug
- IP / NEMA Rating: IP50
- Insert Arrangement: 305
- Male Contact Material: Brass
- Male Contact Plating: Gold
- No. of Mating Cycles: 5000
- Operating Temperature Max: -55°C
- Operating Temperature Min: 250°C
- Voltage Rating V DC: 400V
- Voltage Rating VAC: 260V
- Working Voltage: 260V
