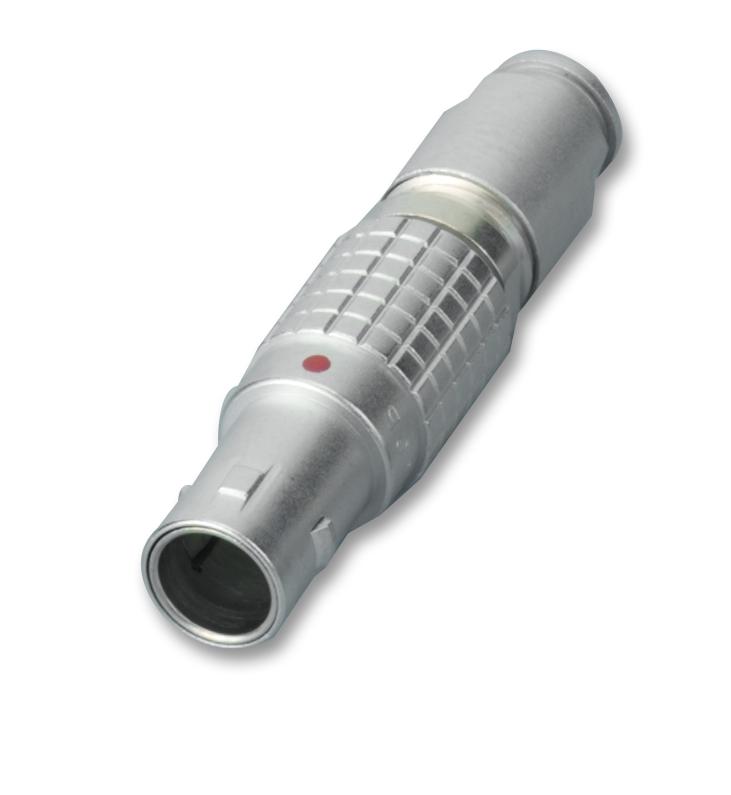

LEMO - FGG.1B.308.CLAD62Z - Circular Connector, 1B Series, Cable Mount Plug, 8 Contacts, Solder Pin, Push-Pull, Brass Body
- Product Range: 1B Series
- Circular Connector Shell Style: Cable Mount Plug
- No. of Contacts: 8Contacts
- Circular Contact Type: Solder Pin
- Coupling Style: Push-Pull
- Connector Body Material: Brass Body
- Connector Body Plating: Chrome
- Contact Material: -
- Contact Plating: -
- SVHC: No SVHC (07-Jul-2017)
- Body Plating: Nickel
- Connector Mounting: Cable Mount
- Connector Type: Circular Industrial
- Contact Gender: Pin
- Contact Resistance: 5.6mohm
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 5A
- Dielectric Strength: 19V/m
- Female Contact Material: Bronze
- Gender: Plug
- IP / NEMA Rating: IP50
- Male Contact Material: Brass
- Male Contact Plating: Gold
- No. of Mating Cycles: 5000
- Operating Temperature Max: -55°C
- Operating Temperature Min: 250°C
- Voltage Rating V DC: 400V
- Voltage Rating VAC: 600V
