FL42/12 TRANSFORMER, 42VA, 2 X 12V BLOCK

BLOCKUGS :FL42/12 Code de commande:1131535

Prix:
Prix ​​promotionnel€77,10

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (19 unité)

Documents et téléchargements

description

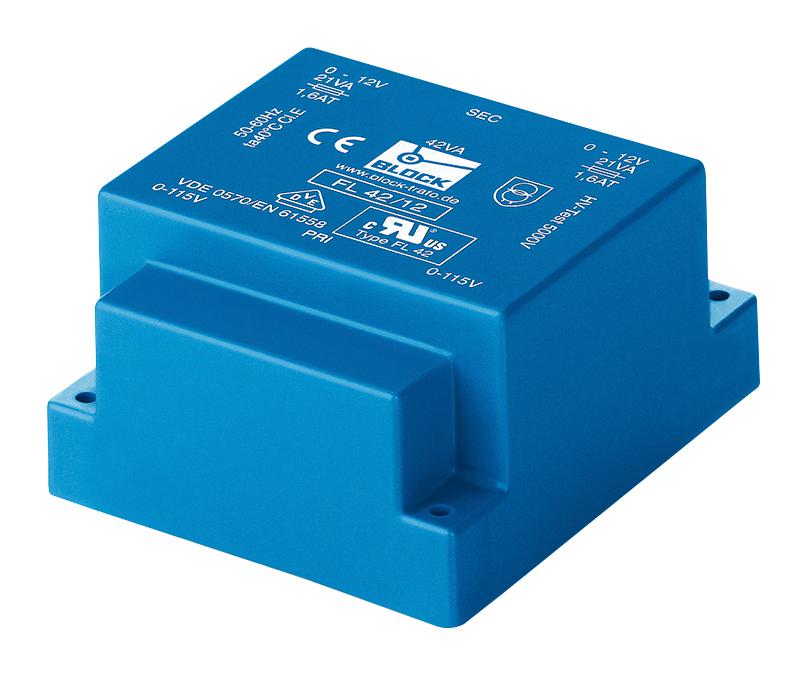

BLOCK - FL42/12 - PCB Transformer, UI 48 x 17, Encapsulated Safety Isolating, 2 x 115V, 2 x 12V, 42 VA, 50Hz / 60Hz

  • Power Rating: 42VA
  • Secondary Voltages: 2 x 12V
  • Current Rating: 1.75A
  • Isolation Transformer Primary Voltages: 2 x 115V
  • Plug Type: -
  • Product Range: FL Series
  • SVHC: No SVHC (12-Jan-2017)
  • AC Power: 42VA
  • Approval Bodies: CSA, UL, VDE
  • External Depth: 39mm
  • External Length / Height: 88.6mm
  • External Width: 70mm
  • Fixing Centres LxW: 75x70
  • Flammability Rating: UL94V-0
  • Hole Spacing - Length: 53.5mm
  • Input Voltage: 115V
  • Isolation Voltage: 5kV
  • Lead Spacing: 10mm
  • Length: 39mm
  • Output 2 Voltage Max: 12V
  • Output Voltage: 12V
  • Pin Length: 5mm
  • Pitch Spacing: 15mm
  • Primary Voltages: 2 x 115V
  • Regulation: 81%
  • Secondary Power: 21VA
  • Transformer Type: Encapsulated
  • Weight: 715g
