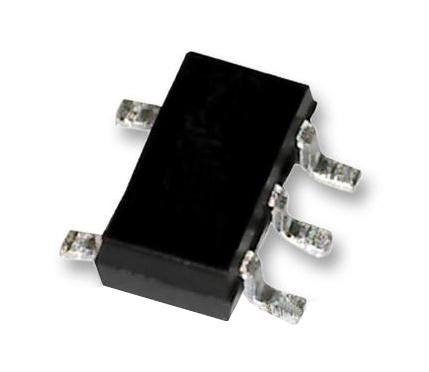

FMG4AT148 Transistor Dual SC-74A NPN/NPN ROHM

ROHMUGS :FMG4AT148 Code de commande:1680321

Prix:
Prix ​​promotionnel€1,18

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2160 unité)

Documents et téléchargements

description

ROHM - FMG4AT148 - Bipolar Pre-Biased / Digital Transistor, Dual NPN, 50 V, 100 mA, 10 kohm

  • Digital Transistor Polarity: Dual NPN
  • Collector Emitter Voltage V(br)ceo: 50V
  • Continuous Collector Current Ic: 100mA
  • Base Input Resistor R1: 10kohm
  • Base-Emitter Resistor R2: -
  • Resistor Ratio, R1 / R2: -
  • RF Transistor Case: SC-74A
  • No. of Pins: 5 Pin
  • Product Range: FMG4A Series
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (15-Jan-2018)
  • Collector Emitter Saturation Voltage Vce(on): 300mV
  • Current Ic Continuous a Max: 10mA
  • DC Collector Current: 100mA
  • DC Current Gain hFE: 250hFE
  • Gain Bandwidth ft Typ: 250MHz
  • Hfe Min: 100
  • Module Configuration: Dual
  • No. of Pins: 5Pins
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Power Dissipation Pd: 300mW
  • Transistor Case Style: SC-74A
  • Transistor Polarity: NPN
  • Transistor Type: General Purpose
  • Transition Frequency ft: 250MHz
