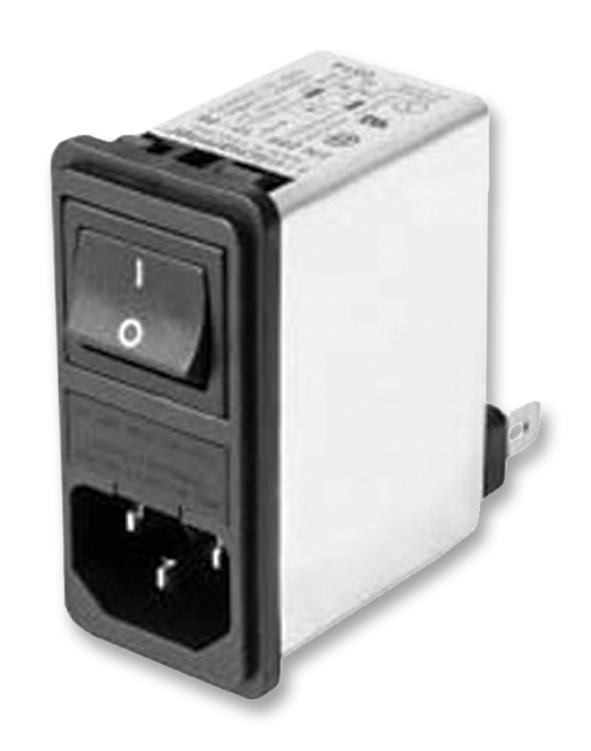

SCHAFFNER - FN286B-6-06 - Filtered IEC Power Entry Module, IEC C14, Medical, 6 A, 250 VAC, 2-Pole Switch
- Product Range: FN 280 Series
- Gender: Plug
- Voltage Rating: 250VAC
- Current Rating: 6A
- Connector Mounting: Panel Mount
- Contact Termination Type: Quick Connect
- SVHC: No SVHC (15-Jan-2019)
- Capacitance: 220nF
- External Depth: 43.6mm
- External Length / Height: 65mm
- External Width: 32mm
- Filter Terminals: Quick Connect
- Filter Type: IEC, Mains
- Inductance Min: 450µH
- Leakage Current Max: 2µA
- No. of Fuses: 2Fuses
- Panel Cutout Depth: 61.5mm
- Panel Cutout Width: 29mm
