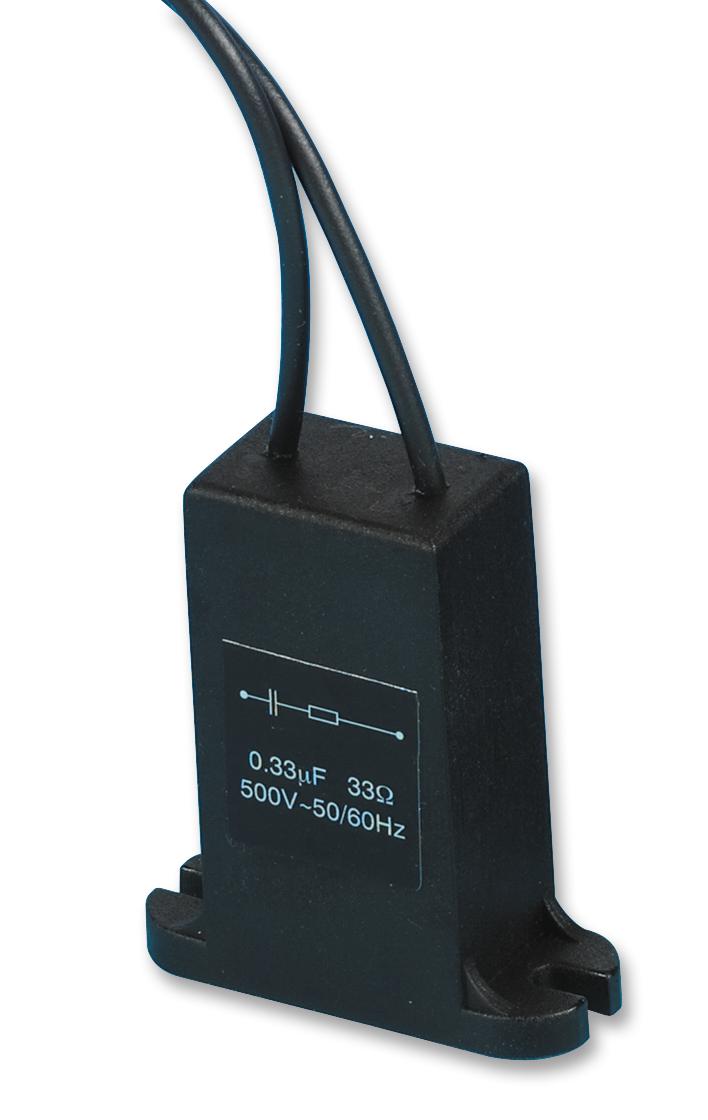

FP012 ARC Suppression, 0.01-0.33UF, 47-470R LCR Components

LCR COMPONENTSUGS :FP012 Code de commande:9520864

Prix:
Prix ​​promotionnel€26,26

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (26 unité)

Documents et téléchargements

description

LCR COMPONENTS - FP012 - RC Network, 0.33 µF, ± 20%, 470 ohm, ± 30%, 6 W, 500 V

  • Product Range: -
  • Capacitance: 0.33µF
  • Capacitance Tolerance: ± 20%
  • Resistance: 470ohm
  • Resistance Tolerance: ± 30%
  • Resistor Power Rating: 6W
  • Voltage Rating VAC: 500V
  • Voltage Rating V DC: -
  • SVHC: No SVHC (15-Jan-2019)
  • AC Power: 6W
  • Capacitance Tolerance +: 10%
  • Capacitance Tolerance -: -10%
  • Connector Type: Wire Leaded
  • Control Voltage AC Max: 500V
  • External Depth: 20mm
  • External Length / Height: 57mm
  • External Width: 29mm
  • Fixing Centres: 43.2mm
  • Insulation Resistance: 100Mohm
  • Lead Length: 300mm
  • No. of Phases: Single Phase
  • Nom Operating Voltage: 500V
  • Operating Frequency Max: 60Hz
  • Operating Frequency Min: 50Hz
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Resistance Tolerance +: 30%
  • Resistance Tolerance -: 30%
  • Suppressor Type: Mains
  • Voltage Rating: 500Vrms
