FSM101 Switch, SPST, 0.05A, 24Vdc, SMD Te Connectivity

TE CONNECTIVITYUGS :FSM101 Code de commande:1813631

Prix:
Prix ​​promotionnel€0,68

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (849 unité)

Documents et téléchargements

description

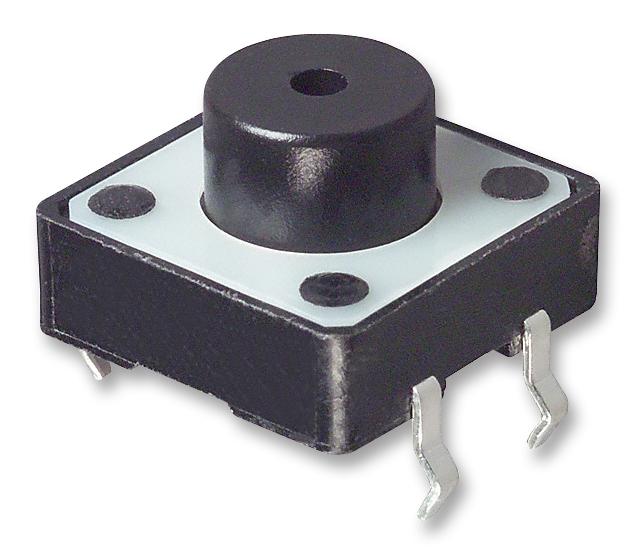

TE CONNECTIVITY - FSM101 - Tactile Switch, FSM10, Top Actuated, Through Hole, Round Button, 160 gf, 50mA at 24VDC

  • Product Range: FSM10 Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: Through Hole
  • Actuator Style: Round Button
  • Actuating Force: 160gf
  • Contact Rating: 50mA at 24VDC
  • Switch Dimensions (L x W): 12mm x 12mm
  • IP Rating: -
  • Illumination: Non Illuminated
  • SVHC: No SVHC (27-Jun-2018)
  • Actuation Type: Round
  • Actuator / Cap Colour: Black
  • Contact Configuration: SPST
  • Contact Current Max: 50mA
  • Contact Voltage DC Nom: 24V
  • Operating Force: 160gf
  • Switch Terminals: Solder
