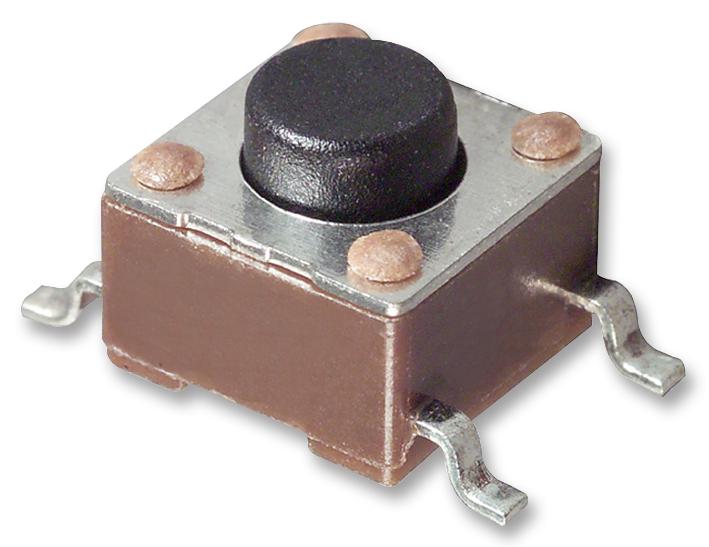

ALCOSWITCH - TE CONNECTIVITY - FSM6JSMA - Tactile Switch, FSMJSM, Top Actuated, Surface Mount, Round Button, 160 gf, 50mA at 24VDC
- Product Range: FSMJSM Series
- Actuator Orientation: Top Actuated
- Switch Mounting: SMD
- Actuator Style: Round Button
- Actuating Force: 160gf
- Contact Rating: 50mA at 24VDC
- Switch Dimensions (L x W): 6mm x 6mm
- IP Rating: -
- Illumination: Non Illuminated
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Raised
- Actuator / Cap Colour: Black
- Colour: Black
- Contact Configuration: SPST-NO
- Contact Current Max: 50mA
- Contact Resistance Max: 100mohm
- Contact Voltage DC Min: 1VDC
- Contact Voltage DC Nom: 24V
- External Depth: 6mm
- External Length / Height: 7mm
- External Width: 6mm
- Insulation Resistance: 100Mohm
- Insulation Resistance Voltage: 100VDC
- Material: PPS
- No. of Mechanical Operations: 100000
- Operating Force: 1.57N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -35°C
- Switch Operation: Off-(On)
- Switch Terminals: Solder
