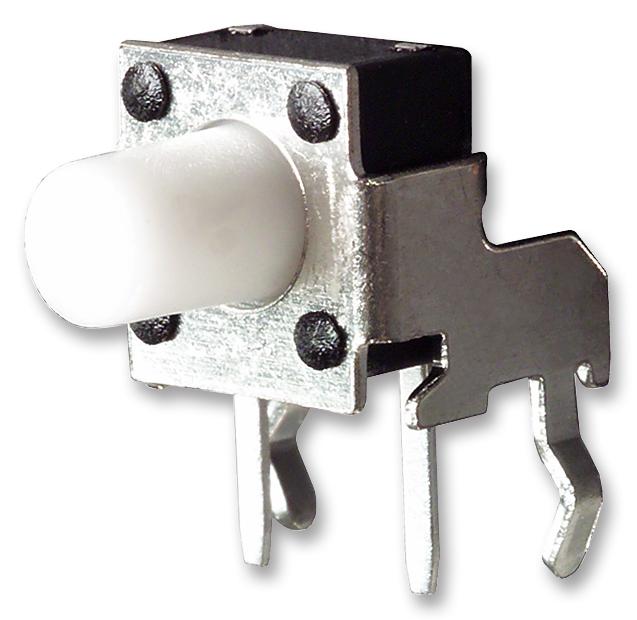

FSMRA6JH Switch, Tactile, SPNO, R/A Te Connectivity

TE CONNECTIVITYUGS :FSMRA6JH Code de commande:1555989

Prix:
Prix ​​promotionnel€0,20

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (11776 unité)

Documents et téléchargements

description

TE CONNECTIVITY - FSMRA6JH - Tactile Switch, FSMRAJ, Side Actuated, Through Hole, Round Button, 160 gf, 50mA at 24VDC

  • Product Range: FSMRAJ Series
  • Actuator Orientation: Side Actuated
  • Switch Mounting: Through Hole
  • Actuator Style: Round Button
  • Actuating Force: 160gf
  • Contact Rating: 50mA at 24VDC
  • Switch Dimensions (L x W): 6mm x 6mm
  • IP Rating: -
  • Illumination: Non Illuminated
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Side
  • Actuator / Cap Colour: White
  • Colour: White
  • Contact Configuration: SPST-NO
  • Contact Current DC Max: 50mA
  • Contact Current Max: 50mA
  • Contact Voltage DC Max: 24VDC
  • Contact Voltage DC Min: 1VDC
  • Contact Voltage DC Nom: 12V
  • External Depth: 3.68mm
  • External Length / Height: 7.01mm
  • External Width: 7.11mm
  • Insulation Resistance Voltage: 100VDC
  • Material: Nylon 6.6
  • No. of Mechanical Operations: 100000
  • Operating Force: 1.6N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -35°C
  • Shaft Diameter: 3.51mm
  • Switch Terminals: Solder
  • Switching Current DC Max: 50mA
  • Switching Current DC Min: 10µA
