FSN-23A-10 Ribbon Cable, 10WAY, 3" Te Connectivity

TE CONNECTIVITYUGS :FSN-23A-10 Code de commande:1310330

Prix:
Prix ​​promotionnel€4,08

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4606 unité)

Documents et téléchargements

description

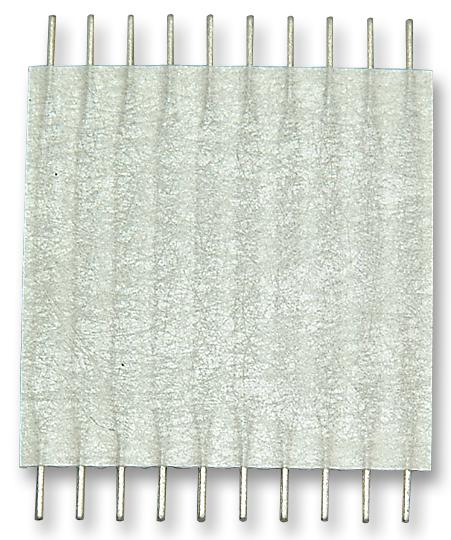

TE CONNECTIVITY - FSN-23A-10 - Ribbon Cable, Jumper Nomex Cable, 10 Ways, 3 ", 76.2 mm, 2.54 mm, Flexstrip/FSN

  • No. of Positions: 10Ways
  • Cable Length - Imperial: 3"
  • Cable Length - Metric: 76.2mm
  • Connector Pitch: 2.54mm
  • Cable Pitch: 22.86mm
  • Product Range: Flexstrip/FSN Series
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: UL
  • Cable Length: 3"
  • Cable Type: Flat (Ribbon)
  • Colour: Grey
  • Conductor Make-up: 1/24AWG
  • Connector Type A: Straight Pin
  • Connector Type B: Straight Pin
  • Current Rating: 3A
  • External Width: 24.1mm
  • Impedance: 107ohm
  • Jacket Colour: Grey
  • Jacket Material: FR Meta-Aramid
  • No. of Contacts: 10Contacts
  • No. of Cores: 10Core
  • No. of Max Strands x Strand Size: Solid
  • Operating Temperature Max: +125°C
  • PCB Hole Diameter: 1mm
  • Pitch Spacing: 2.54mm
  • Voltage Rating: 200VAC
