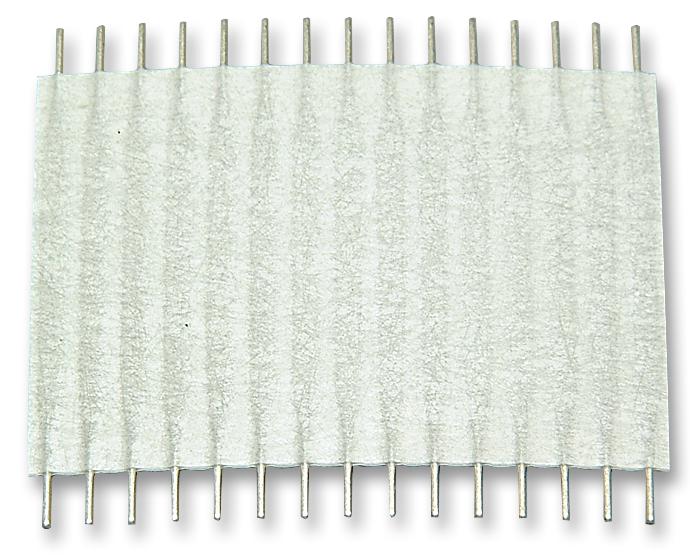

TE CONNECTIVITY - FSN-23A-15 - Ribbon Cable, Jumper Nomex Cable, 15 Ways, 3 ", 76.2 mm, 2.54 mm, Flexstrip/FSN
- No. of Positions: 15Ways
- Cable Length - Imperial: 3"
- Cable Length - Metric: 76.2mm
- Connector Pitch: 2.54mm
- Cable Pitch: 35.56mm
- Product Range: Flexstrip/FSN Series
- Approval Bodies: UL
- Cable Length: 3"
- Cable Type: Flat (Ribbon)
- Colour: Grey
- Conductor Make-up: 1/24AWG
- Connector Type A: Straight Pin
- Connector Type B: Straight Pin
- Current Rating: 3A
- External Width: 36.8mm
- Impedance: 107ohm
- Jacket Colour: Grey
- Jacket Material: FR Meta-Aramid
- No. of Contacts: 15Contacts
- No. of Cores: 15Core
- No. of Max Strands x Strand Size: Solid
- Operating Temperature Max: +125°C
- PCB Hole Diameter: 1mm
- Pitch Spacing: 2.54mm
- Voltage Rating: 200VAC
