FST-23A-15 Ribbon Cable, PTFE, 15WAY, 3 Te Connectivity

TE CONNECTIVITYUGS :FST-23A-15 Code de commande:1310376

Prix:
Prix ​​promotionnel€8,84

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (671 unité)

Documents et téléchargements

description

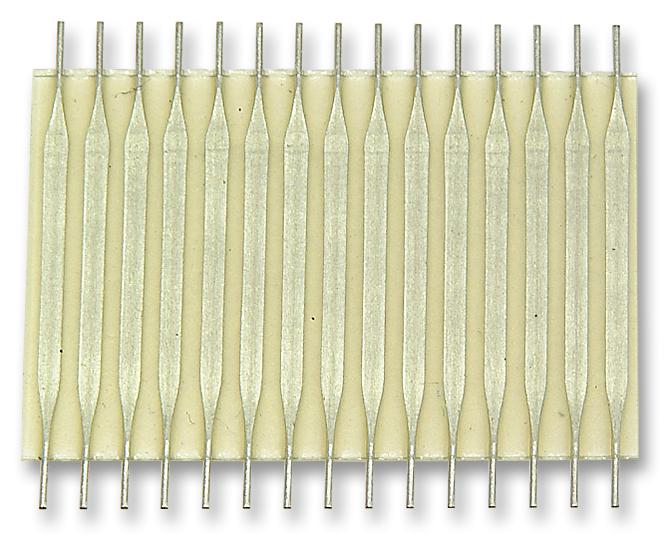

TE CONNECTIVITY - FST-23A-15 - Ribbon Cable, Jumper PTFE Cable, 15 Ways, 2.54 mm, Flexstrip/FST

  • No. of Positions: 15Ways
  • Cable Length - Imperial: -
  • Cable Length - Metric: -
  • Connector Pitch: 2.54mm
  • Cable Pitch: 35.56mm
  • Product Range: Flexstrip/FST Series
  • SVHC: No SVHC (12-Jan-2017)
  • Approval Bodies: UL
  • Cable Length: 3"
  • Cable Type: Flat (Ribbon)
  • Colour: Grey
  • Conductor Make-up: 1/24AWG
  • Conductor Material: Copper
  • Connector Type A: Straight Pin
  • Connector Type B: Straight Pin
  • Current Rating: 2A
  • External Width: 36.8mm
  • Full Power Rating Temperature: 150°C
  • Impedance: 101ohm
  • Jacket Colour: Grey
  • Jacket Material: PTFE
  • No. of Contacts: 15Contacts
  • No. of Cores: 15Core
  • No. of Max Strands x Strand Size: Solid
  • Operating Temperature Max: 150°C
  • PCB Hole Diameter: 1mm
  • Pitch Spacing: 2.54mm
  • Resistance per Metre: 0.21ohm/m
  • Voltage Rating: 300VAC
