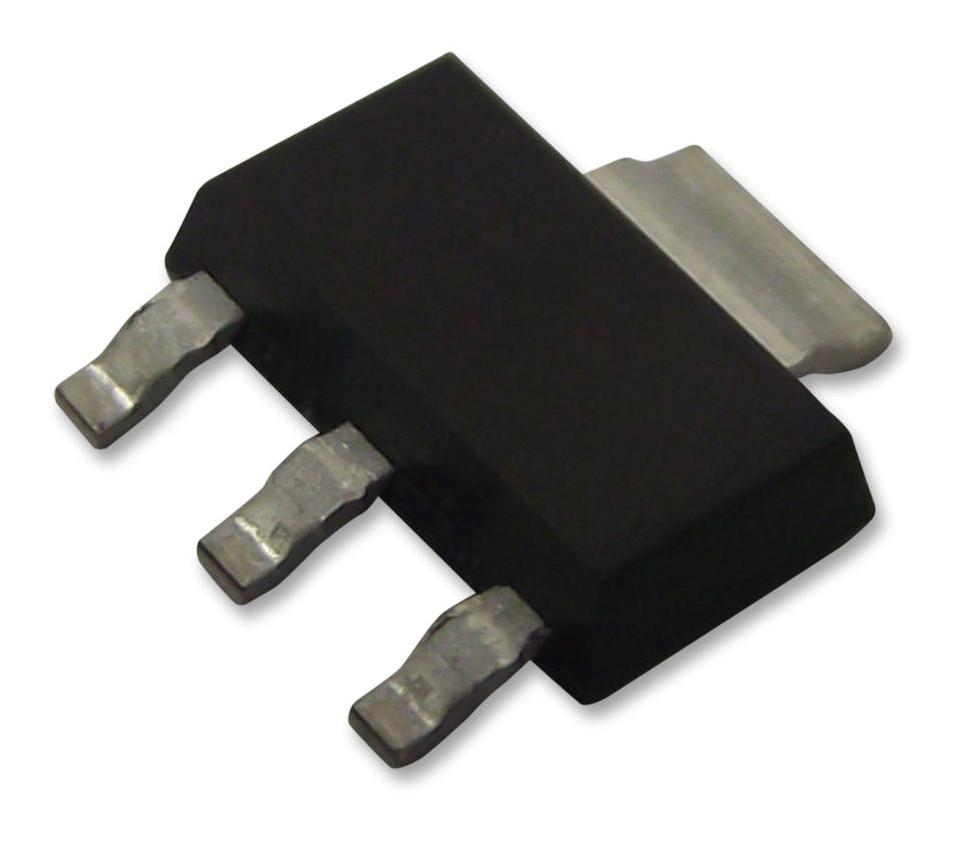

FZT788B Transistor, PNP, Sot-223 Diodes Inc.

DIODES INC.UGS :FZT788B Code de commande:9526625

Prix:
Prix ​​promotionnel€1,85

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1034 unité)

Documents et téléchargements

description

DIODES INC. - FZT788B - Bipolar (BJT) Single Transistor, PNP, 15 V, 3 A, 2 W, SOT-223, Surface Mount

  • Transistor Polarity: PNP
  • Collector Emitter Voltage V(br)ceo: 15V
  • Transition Frequency ft: 100MHz
  • Power Dissipation Pd: 2W
  • DC Collector Current: -3A
  • DC Current Gain hFE: 500hFE
  • Transistor Case Style: SOT-223
  • No. of Pins: 4Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: Lead (15-Jan-2019)
  • Collector Emitter Saturation Voltage Vce(on): 450mV
  • Continuous Collector Current Ic Max: 3A
  • Current Ic @ Vce Sat: 2A
  • Current Ic Continuous a Max: 3A
  • Current Ic hFE: 2A
  • Full Power Rating Temperature: 25°C
  • Gain Bandwidth ft Min: 100MHz
  • Gain Bandwidth ft Typ: 100MHz
  • Hfe Min: 300
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Power Dissipation Ptot Max: 2W
  • Pulsed Current Icm: 8A
  • SMD Marking: FZT788B
  • Voltage Vcbo: 15V
