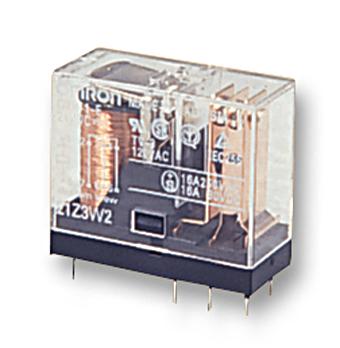

G2R-1 DC5 Relay, SPDT, 250VAC, 30Vdc, 10A Omron

OMRONUGS :G2R-1 DC5 Code de commande:9949372

Prix:
Prix ​​promotionnel€8,35

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (95 unité)

Documents et téléchargements

description

OMRON - G2R-1 DC5 - Power Relay, SPDT, 5 VDC, 10 A, G2R, Through Hole, Non Latching

  • Contact Configuration: SPDT
  • Coil Voltage: 5VDC
  • Contact Current: 10A
  • Product Range: G2R Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 47ohm
  • Approval Bodies: CSA, SEMKO, SEV, UL
  • Approvals & Standards: CSA, IEC, UL, VDE
  • Coil Current: 106mA
  • Coil Operating Lower Percent Limit: 70%
  • Coil Operating Upper Percent Limit: 110%
  • Coil Voltage VDC Nom: 5V
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 10A
  • Contact Current Max: 10A
  • Contact Voltage AC Max: 240V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 530mW
  • External Depth: 25.5mm
  • External Height: 29mm
  • External Length / Height: 29mm
  • External Width: 13mm
  • Nom Operating Power: 530mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Operating Time: 15ms
  • Relay Type: Power - General Purpose
  • Release Time: 15ms
