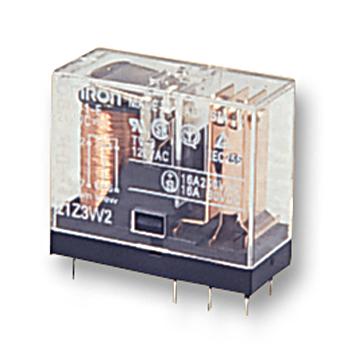

G2R-1A-E DC5 Relay, SPST-NO, 250VAC, 30Vdc, 10A Omron

OMRONUGS :G2R-1A-E DC5 Code de commande:2065714

Prix:
Prix ​​promotionnel€7,99

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (75 unité)

Documenten en downloads

description

OMRON - G2R-1A-E DC5 - General Purpose Relay, G2R Series, Power, Non Latching, SPST-NO, 5 VDC, 10 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 5VDC
  • Contact Current: 10A
  • Product Range: G2R Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 47ohm
  • Approvals & Standards: CSA, IEC, UL, VDE
  • Coil Current: 106mA
  • Coil Voltage VDC Nom: 5V
  • Contact Current Max: 16A
  • Contact Voltage AC Nom: 380V
  • Contact Voltage DC Nom: 125V
  • External Depth: 29mm
  • External Height: 25.5mm
  • External Width: 13mm
  • Nom Operating Power: 530mW
  • Relay Type: Power
