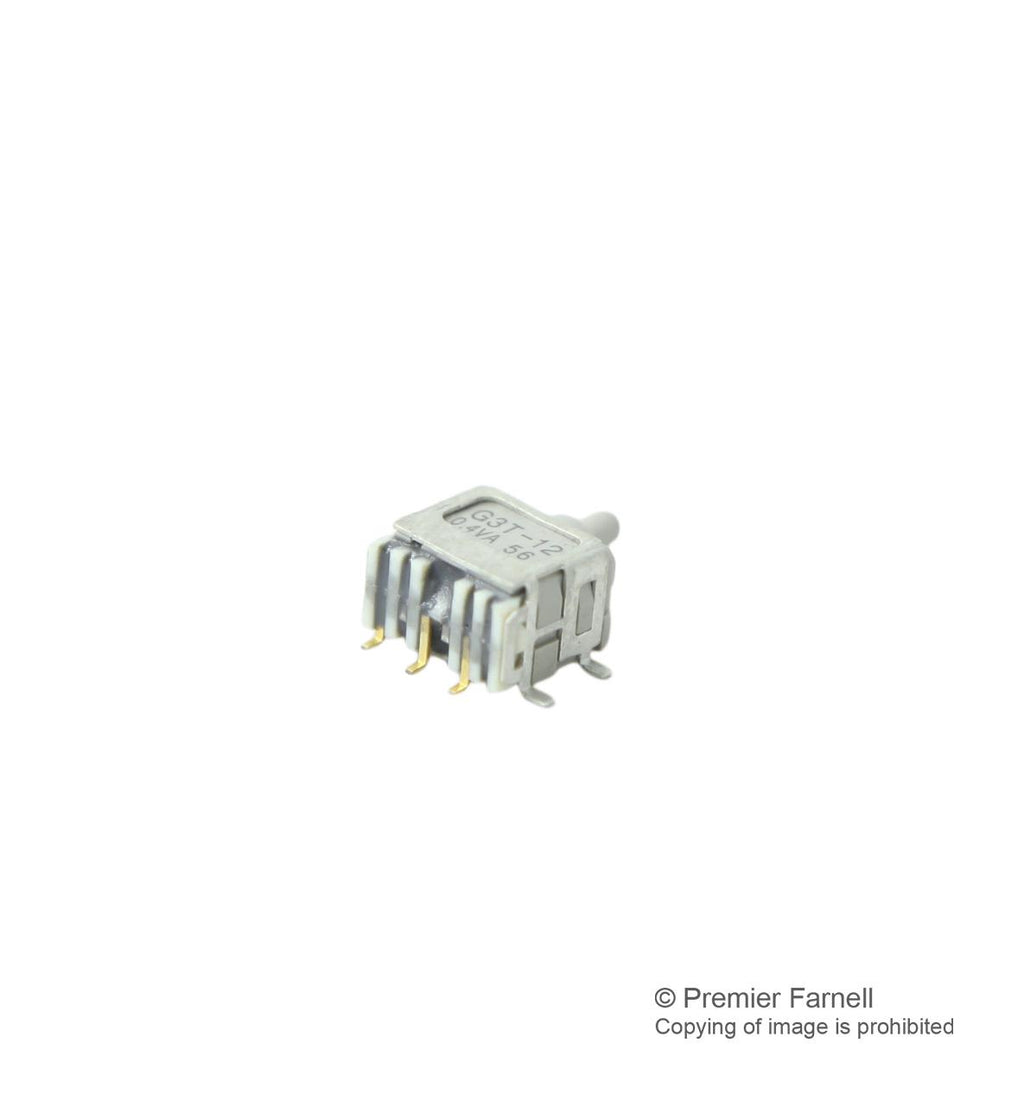

G3T12AH Toggle Switch, SPDT, R/A, SMD, On-On NKK Switches

NKK SWITCHESUGS :G3T12AH Code de commande:1524245

Prix:
Prix ​​promotionnel€19,35

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (5 unité)

Documents et téléchargements

description

NKK SWITCHES - G3T12AH - Toggle Switch, On-On, SPDT, Non Illuminated, G3T, Surface Mount, 100 mA

  • Switch Operation: On-On
  • Contact Configuration: SPDT
  • Illumination: Non Illuminated
  • Product Range: G3T Series
  • Contact Current Max: 100mA
  • Switch Mounting: SMD
  • Contact Voltage AC Nom: 28V
  • Switch Terminals: Solder
  • Contact Voltage DC Nom: 28V
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Lever
  • Bush Diameter: 4mm
  • Bush Thread Length: 1.5mm
  • Contact Current AC Max: 100mA
  • Contact Current DC Max: 100mA
  • Contact Resistance Max: 80mohm
  • Contact Voltage AC Max: 28VAC
  • Contact Voltage AC Min: 20mV
  • Contact Voltage DC Max: 28VDC
  • Contact Voltage DC Min: 20mV
  • External Depth: 9mm
  • External Width: 8.5mm
  • Height: 5.55mm
  • Insulation Resistance: 500Mohm
  • Insulation Resistance Voltage: 500VDC
  • Lever Length: 3.8mm
  • Material: Polyphenylene sulfide
  • No. of Electrical Operations: 50000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Shaft Diameter: 1.7mm
  • Switching Current AC Max: 0.1A
  • Switching Current AC Min: 0.1mA
  • Switching Current DC Max: 0.1A
  • Switching Current DC Min: 0.1mA
