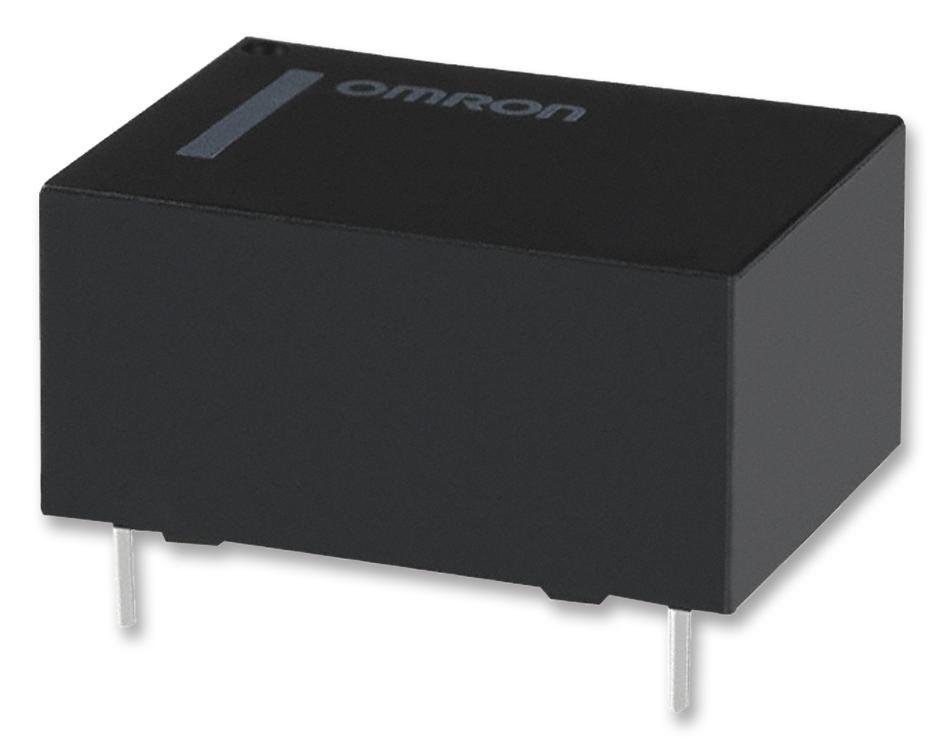

OMRON - G5CA-1A DC5 - General Purpose Relay, G5CA Series, Power, Non Latching, SPST-NO, 5 VDC, 10 A
- Contact Configuration: SPST-NO
- Coil Voltage: 5VDC
- Contact Current: 10A
- Product Range: G5CA Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 125VDC
- Contact Material: Silver Alloy
- Coil Resistance: 125ohm
- Approvals & Standards: CSA, UL
- Coil Current: 40mA
- Coil Voltage VDC Nom: 5V
- Contact Current Max: 10A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 125V
- External Depth: 22mm
- External Height: 11mm
- External Width: 16mm
- Nom Operating Power: 200mW
- Relay Type: Power
