G5LE-1 DC12 Relay, SPDT, 250VAC, 30Vdc, 10A Omron

OMRONUGS :G5LE-1 DC12 Code de commande:9949895

Prix:
Prix ​​promotionnel€2,80

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4424 unité)

Documents et téléchargements

description

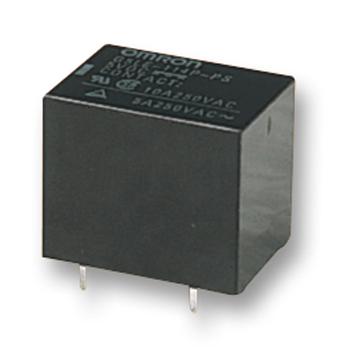

OMRON - G5LE-1 DC12 - General Purpose Relay, G5LE Series, Power, Non Latching, SPDT, 12 VDC, 10 A

  • Contact Configuration: SPDT
  • Coil Voltage: 12VDC
  • Contact Current: 10A
  • Product Range: G5LE Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 360ohm
  • Approvals & Standards: CSA, IEC, UL, VDE
  • Coil Current: 33.3mA
  • Coil Voltage VDC Nom: 12V
  • Contact Current Max: 10A
  • Contact Voltage AC Nom: 120V
  • Contact Voltage DC Nom: 30V
  • External Depth: 16.5mm
  • External Height: 19mm
  • External Width: 22.5mm
  • Nom Operating Power: 400mW
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Relay Type: Power
