G5V-2-H1 DC5 Relay, Signal, DPDT, 24Vdc, 1A Omron

OMRONUGS :G5V-2-H1 DC5 Code de commande:9949844

Prix:
Prix ​​promotionnel€5,64

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4684 unité)

Documents et téléchargements

description

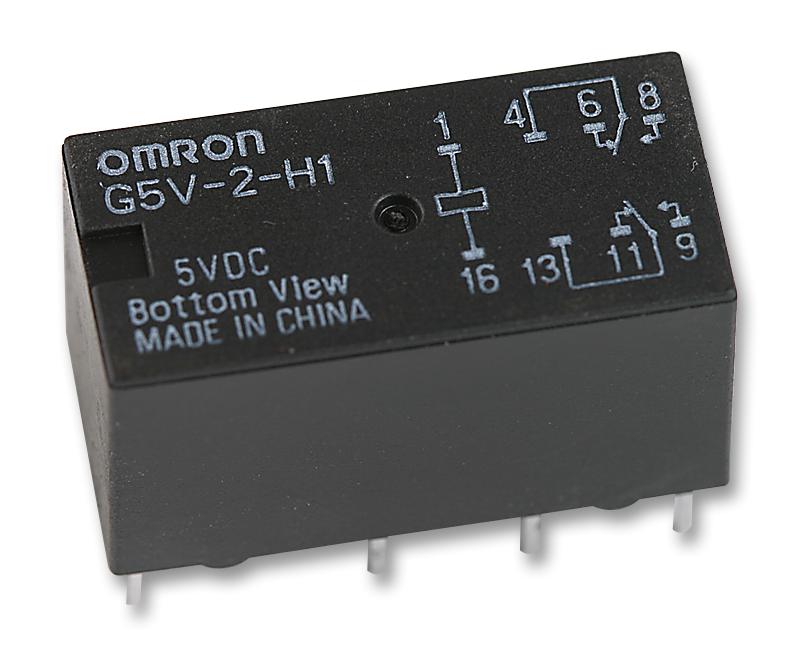

OMRON - G5V-2-H1 DC5 - Signal Relay, 5 VDC, DPDT, 1 A, G5V-2, Through Hole, Non Latching

  • Coil Voltage: 5VDC
  • Contact Configuration: DPDT
  • Contact Current: 1A
  • Product Range: G5V-2 Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Relay Terminals: Solder
  • Contact Voltage VAC: -
  • Contact Voltage VDC: 24V
  • Contact Material: Silver
  • Coil Resistance: 166.7ohm
  • Approvals & Standards: CSA, UL
  • Coil Current: 30mA
  • Coil Power Continuous: 150mW
  • Coil Voltage VDC Nom: 5V
  • Contact Current Max: 2A
  • Contact Voltage AC Nom: 125V
  • Contact Voltage DC Nom: 24V
  • External Depth: 20.5mm
  • External Height: 11.5mm
  • External Width: 10.1mm
