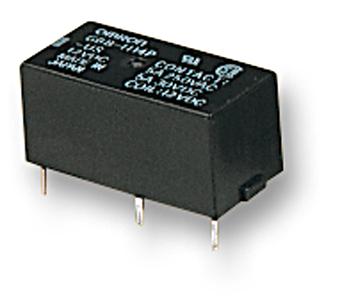

OMRON - G6B-1114P-US-SV DC24 - General Purpose Relay, G6B Series, Power, Non Latching, SPST, 24 VDC, 5 A
- Contact Configuration: SPST
- Coil Voltage: 24VDC
- Contact Current: 5A
- Product Range: G6B Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Alloy
- Coil Resistance: 2.88kohm
- Approval Bodies: CSA, SEV
- Approval Category: UL Recognised
- Approvals & Standards: CSA, UL
- Coil Current: 8.3mA
- Coil Operating Lower Percent Limit: 70%
- Coil Operating Upper Percent Limit: 160%
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 5A
- Contact Current DC Max: 5A
- Contact Current Max: 5A
- Contact Resistance: 30mohm
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 30V
- DC Coil Power: 200mW
- Dielectric Voltage Coil to Contact: 3000VAC
- Dielectric Voltage Contact to Contact: 1000VAC
- External Depth: 10mm
- External Height: 20mm
- External Length / Height: 20mm
- External Width: 10mm
- Insulation Resistance: 1000Mohm
- Operating Time: 10ms
