G6E-134P-US DC12 Relay, Signal, SPDT, 30Vdc, 2A Omron

OMRONUGS :G6E-134P-US DC12 Code de commande:9949178

Prix:
Prix ​​promotionnel€7,64

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (293 unité)

Documents et téléchargements

description

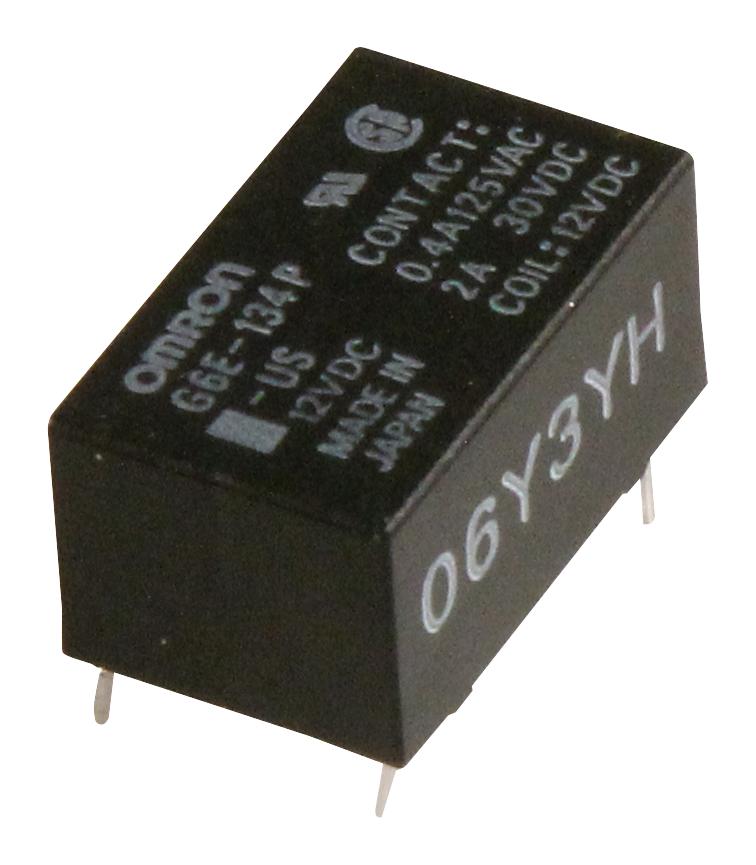

OMRON - G6E-134P-US DC12 - Signal Relay, 12 VDC, SPDT, 2 A, G6E, Through Hole, Non Latching

  • Coil Voltage: 12VDC
  • Contact Configuration: SPDT
  • Contact Current: 2A
  • Product Range: G6E Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Relay Terminals: Solder
  • Contact Voltage VAC: -
  • Contact Voltage VDC: 30V
  • Contact Material: Silver
  • Coil Resistance: 720ohm
  • Approvals & Standards: CSA, UL
  • Coil Current: 16.7mA
  • Coil Power Continuous: 200mW
  • Coil Voltage VDC Nom: 12V
  • Contact Current Max: 3A
  • Contact Voltage AC Nom: 125V
  • Contact Voltage DC Nom: 30V
  • External Depth: 16mm
  • External Height: 8mm
  • External Width: 10mm
