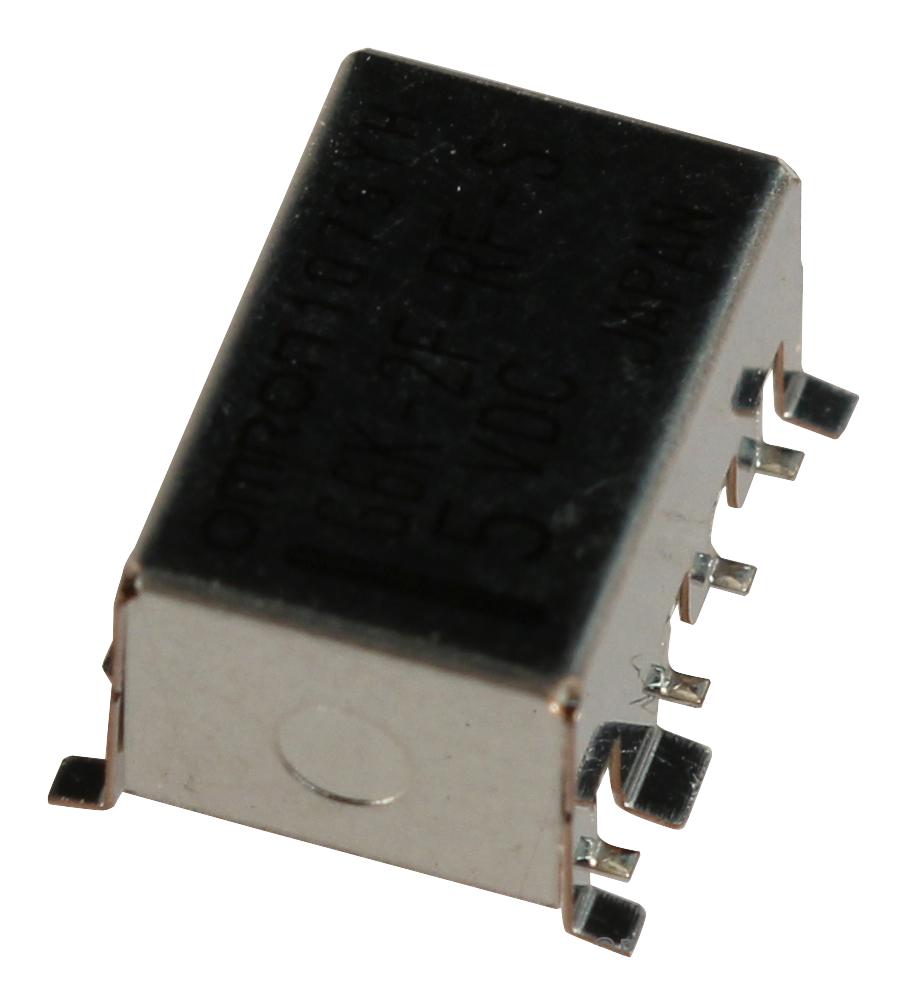

G6K-2F-RF-S DC5 Relay, DPDT, 30Vdc, 1A Omron

OMRONUGS :G6K-2F-RF-S DC5 Code de commande:2352324

Prix:
Prix ​​promotionnel€36,34

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (30 unité)

Documents et téléchargements

description

OMRON - G6K-2F-RF-S DC5 - General Purpose Relay, G6K-RF Series, High Frequency, Non Latching, DPDT, 5 VDC, 1 A

  • Contact Configuration: DPDT
  • Coil Voltage: 5VDC
  • Contact Current: 1A
  • Product Range: G6K-RF Series
  • Relay Mounting: SMD
  • Coil Type: Non Latching
  • Contact Voltage VAC: -
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver
  • Coil Resistance: 237ohm
  • Coil Frequency Max: 1GHz
  • Coil Voltage VDC Nom: 5V
  • Contact Current Max: 1A
  • Contact Voltage AC Nom: 125V
  • Contact Voltage DC Nom: 60V
  • External Depth: 10.7mm
  • External Height: 5.4mm
  • External Width: 6.9mm
  • Insertion Loss Max: 0.2dB
  • Relay Type: High Frequency
  • VSWR: 1.2
