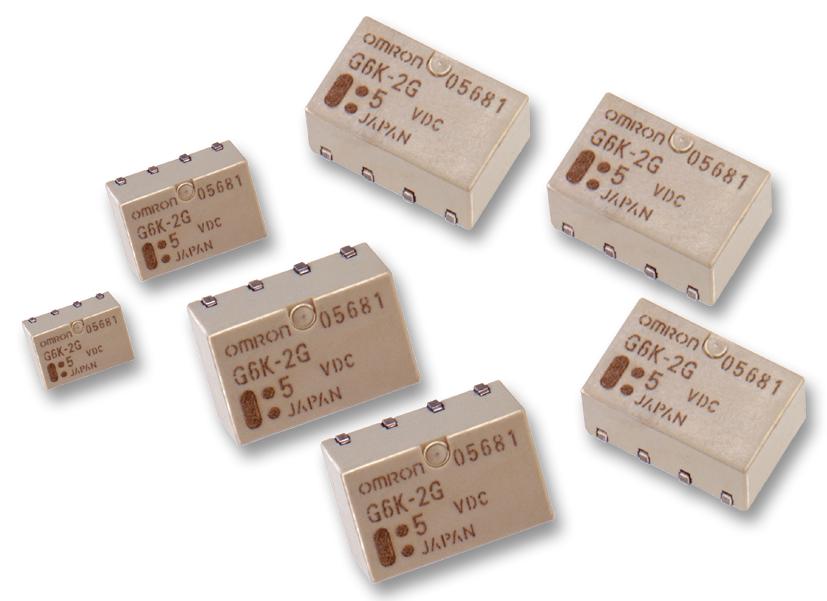

OMRON - G6K-2PY DC12 - Signal Relay, 12 VDC, DPDT, 1 A, G6K, Through Hole, Non Latching
- Coil Voltage: 12VDC
- Contact Configuration: DPDT
- Contact Current: 1A
- Product Range: G6K Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Relay Terminals: Solder
- Contact Voltage VAC: -
- Contact Voltage VDC: 30V
- Contact Material: Silver Gold
- Coil Resistance: 1.315kohm
- Approvals & Standards: CSA, UL
- Coil Current: 9.1mA
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 1A
- Contact Current DC Max: 1A
- Contact Current Max: 1A
- Contact Resistance: 100mohm
- Contact Voltage AC Max: 125V
- Contact Voltage AC Nom: 125V
- Contact Voltage DC Max: 60V
- Contact Voltage DC Nom: 30V
- Current Rating: 9.1mA
- DC Coil Power: 100mW
- Dielectric Strength VDC: 1500VAC
- External Depth: 6.5mm
- External Height: 5.2mm
- External Length / Height: 5.2mm
- External Width: 10mm
- Insulation Resistance: 1000Mohm
- Mechanical Life: 50,000,000 Operations
- No. of Mechanical Operations: 50000000
- Nom Operating Power: 100mW
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Operating Time: 1.4ms
