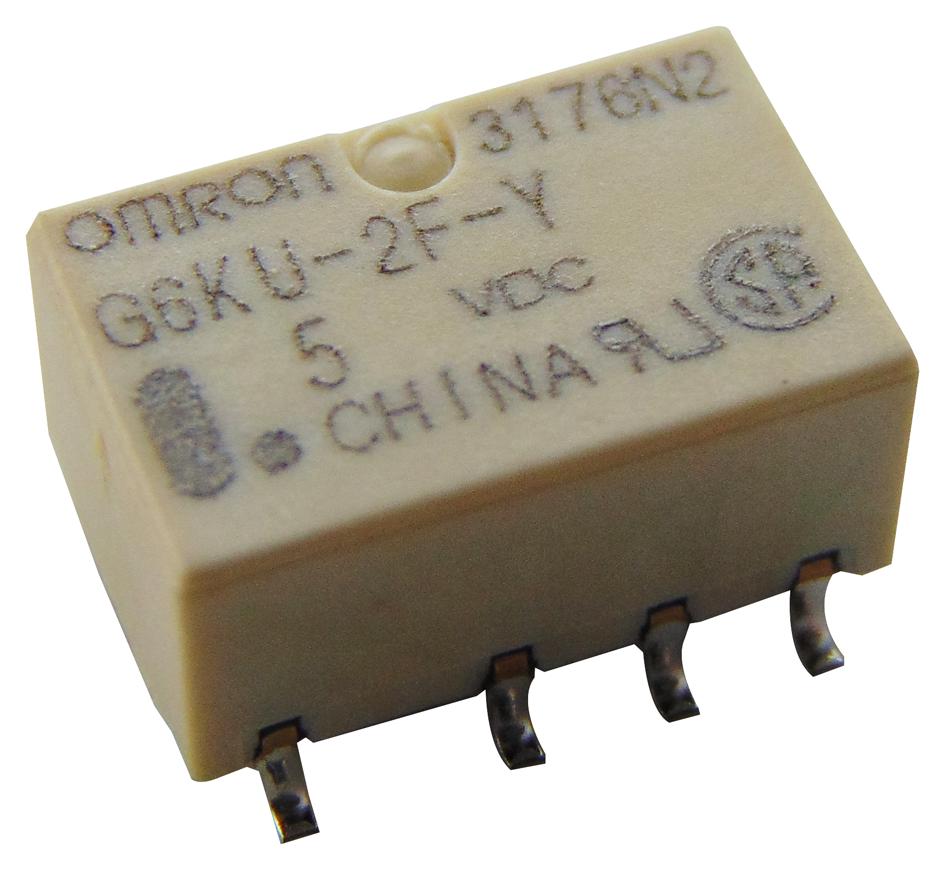

G6KU-2FY DC5 Relay, Signal, DPDT, 30Vdc, 1A Omron

OMRONUGS :G6KU-2FY DC5 Code de commande:1181072

Prix:
Prix ​​promotionnel€7,29

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (573 unité)

Documents et téléchargements

description

OMRON - G6KU-2FY DC5 - Signal Relay, 5 VDC, DPDT, 1 A, G6K, Surface Mount, Latching Single Coil

  • Coil Voltage: 5VDC
  • Contact Configuration: DPDT
  • Contact Current: 1A
  • Product Range: G6K Series
  • Relay Mounting: SMD
  • Coil Type: Latching Single Coil
  • Relay Terminals: Solder
  • Contact Voltage VAC: -
  • Contact Voltage VDC: 30V
  • Contact Material: Silver Gold
  • Coil Resistance: 237ohm
  • Approval Bodies: CSA
  • Approval Category: UL Recognised
  • Approvals & Standards: CSA, UL
  • Coil Current: 21.1mA
  • Coil Power Continuous: 100mW
  • Coil Voltage VDC Nom: 5V
  • Contact Current AC Max: 300mA
  • Contact Current DC Max: 1A
  • Contact Current Max: 1A
  • Contact Current Rating: 1A
  • Contact Resistance: 100mohm
  • Contact Voltage AC Nom: 125V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 100mW
  • Dielectric Voltage Coil to Contact: 1500VAC
  • Dielectric Voltage Contact to Contact: 1000VAC
  • External Depth: 6.5mm
  • External Height: 5.2mm
  • External Length / Height: 5.2mm
  • External Width: 10mm
  • Insulation Resistance: 1000Mohm
  • No. of Electrical Operations: 100000
  • No. of Mechanical Operations: 50000000
  • No. of Pins: 8Pins
  • Operating Time: 3ms
