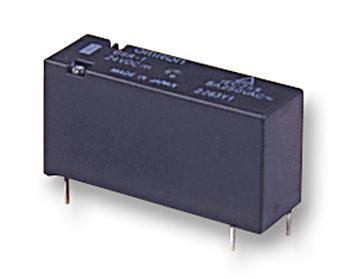

G6RN-1 DC12 Relay, SPDT, 250VAC, 8A Omron

OMRONUGS :G6RN-1 DC12 Code de commande:9949941

Prix:
Prix ​​promotionnel€5,97

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4735 unité)

Documents et téléchargements

description

OMRON - G6RN-1 DC12 - General Purpose Relay, G6RN Series, Power, Non Latching, SPDT, 12 VDC, 8 A

  • Contact Configuration: SPDT
  • Coil Voltage: 12VDC
  • Contact Current: 8A
  • Product Range: G6RN Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Alloy
  • Coil Resistance: 655ohm
  • Approval Bodies: CSA, VDE
  • Approval Category: UL Recognised
  • Coil Current: 18.3mA
  • Coil Operating Lower Percent Limit: 70%
  • Coil Operating Upper Percent Limit: 110%
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 8A
  • Contact Current DC Max: 5A
  • Contact Current Max: 8A
  • Contact Voltage AC Max: 240V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 220mW
  • External Depth: 10.5mm
  • External Height: 15.3mm
  • External Length / Height: 15.3mm
  • External Width: 28.8mm
  • Nom Operating Power: 220mW
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Time: 15ms
  • Relay Type: Power
  • Release Time: 5ms
  • Weight: 9g
