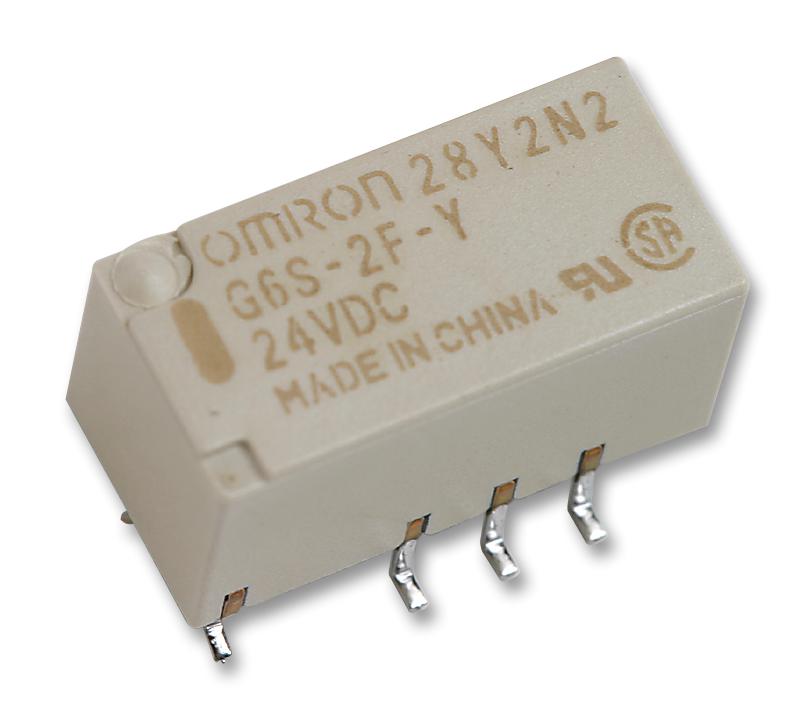

OMRON - G6S-2FY DC12 - Signal Relay, 12 VDC, DPDT, 2 A, G6S, Surface Mount, Non Latching
- Coil Voltage: 12VDC
- Contact Configuration: DPDT
- Contact Current: 2A
- Product Range: G6S Series
- Relay Mounting: SMD
- Coil Type: Non Latching
- Relay Terminals: Solder
- Contact Voltage VAC: -
- Contact Voltage VDC: 30V
- Contact Material: Silver Gold
- Coil Resistance: 720ohm
- Approval Bodies: CSA, UL
- Approval Category: EN 60950
- Approvals & Standards: CSA, UL
- Coil Current: 16.7mA
- Coil Operating Lower Percent Limit: 75%
- Coil Operating Upper Percent Limit: 170%
- Coil Power Continuous: 200mW
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 500mA
- Contact Current DC Max: 2A
- Contact Current Max: 2A
- Contact Voltage AC Max: 125V
- Contact Voltage AC Nom: 125V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 30V
- DC Coil Power: 140mW
- External Depth: 9.4mm
- External Height: 15mm
- External Length / Height: 15mm
- External Width: 7.5mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Time: 4ms
- Release Time: 4ms
- Switch Current Max: 2A
- Switching Current Max: 2A
