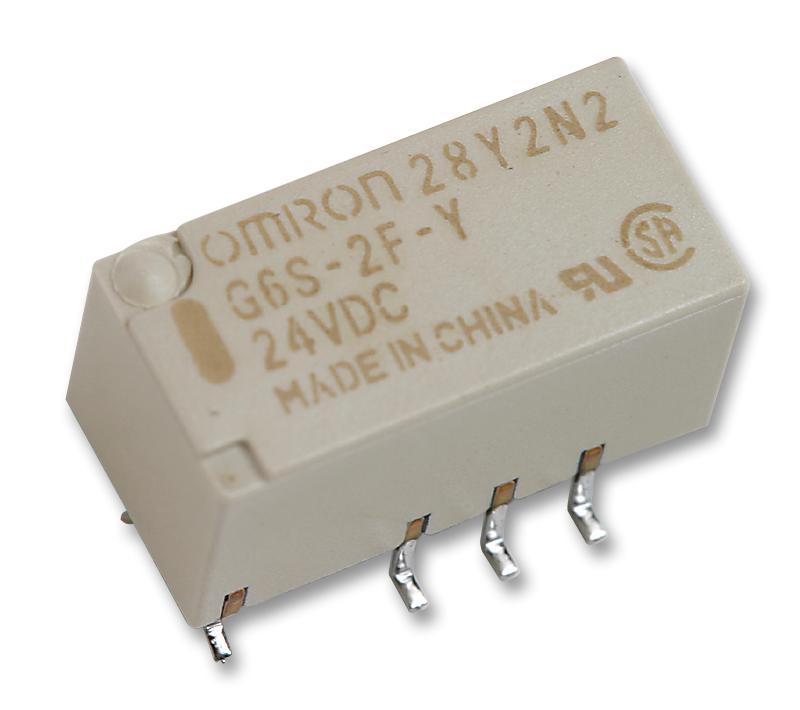

G6S-2FY DC24 Relay, Signal, DPDT, 30Vdc, 2A Omron

OMRONUGS :G6S-2FY DC24 Code de commande:9950044

Prix:
Prix ​​promotionnel€7,03

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1285 unité)

Documents et téléchargements

description

OMRON - G6S-2FY DC24 - Signal Relay, 24 VDC, DPDT, 2 A, G6S, Surface Mount, Non Latching

  • Coil Voltage: 24VDC
  • Contact Configuration: DPDT
  • Contact Current: 2A
  • Product Range: G6S Series
  • Relay Mounting: SMD
  • Coil Type: Non Latching
  • Relay Terminals: Solder
  • Contact Voltage VAC: -
  • Contact Voltage VDC: 30V
  • Contact Material: Silver Gold
  • Coil Resistance: 2.504kohm
  • Approval Bodies: CSA, UL
  • Approval Category: EN 60950
  • Approvals & Standards: CSA, UL
  • Coil Current: 9.6mA
  • Coil Operating Lower Percent Limit: 75%
  • Coil Operating Upper Percent Limit: 170%
  • Coil Power Continuous: 230mW
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 500mA
  • Contact Current DC Max: 2A
  • Contact Current Max: 2A
  • Contact Voltage AC Max: 125V
  • Contact Voltage AC Nom: 125V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 140mW
  • External Depth: 9.4mm
  • External Height: 15mm
  • External Length / Height: 15mm
  • External Width: 7.5mm
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Time: 4ms
  • Release Time: 4ms
  • Switch Current Max: 2A
  • Switching Current Max: 2A
