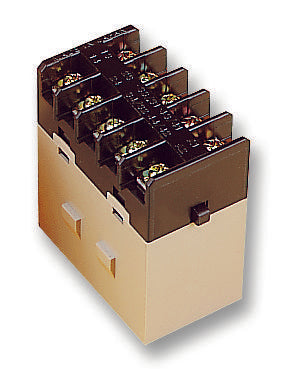

OMRON - G7J-3A1B-B DC24 - General Purpose Relay, G7J Series, Power, Non Latching, 3PST-NO, SPST-NC, 24 VDC, 25 A
- Contact Configuration: 3PST-NO, SPST-NC
- Coil Voltage: 24VDC
- Contact Current: 25A
- Product Range: G7J Series
- Relay Mounting: Panel
- Coil Type: Non Latching
- Contact Voltage VAC: 277VAC
- Relay Terminals: Screw
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Alloy
- Coil Resistance: 288ohm
- Approval Bodies: CSA, UL
- Approvals & Standards: CSA, UL, VDE
- Coil Current: 83mA
- Coil Operating Lower Percent Limit: 75%
- Coil Operating Upper Percent Limit: 110%
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 25A
- Contact Current Max: 25A
- Contact Resistance: 50mohm
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 220V
- Contact Voltage DC Max: 125V
- Contact Voltage DC Nom: 30V
- DC Coil Power: 2W
- External Depth: 34.5mm
- External Height: 34.5mm
- External Length / Height: 34.5mm
- External Width: 51.5mm
- Insulation Resistance: 1000Mohm
- No. of Electrical Operations: 100000
- No. of Mechanical Operations: 1000000
- Nom Operating Power: 2W
- Operating Temperature Max: 60°C
- Operating Time: 50ms
