GP2000S40-0.080-02-4/4 Gap Pad, 2000S40, .080", 4"x4" Sheet BERGQUIST

BERGQUISTUGS :GP2000S40-0.080-02-4/4 Code de commande:8783470

Prix:
Prix ​​promotionnel€70,81

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (24 unité)

Documents et téléchargements

description

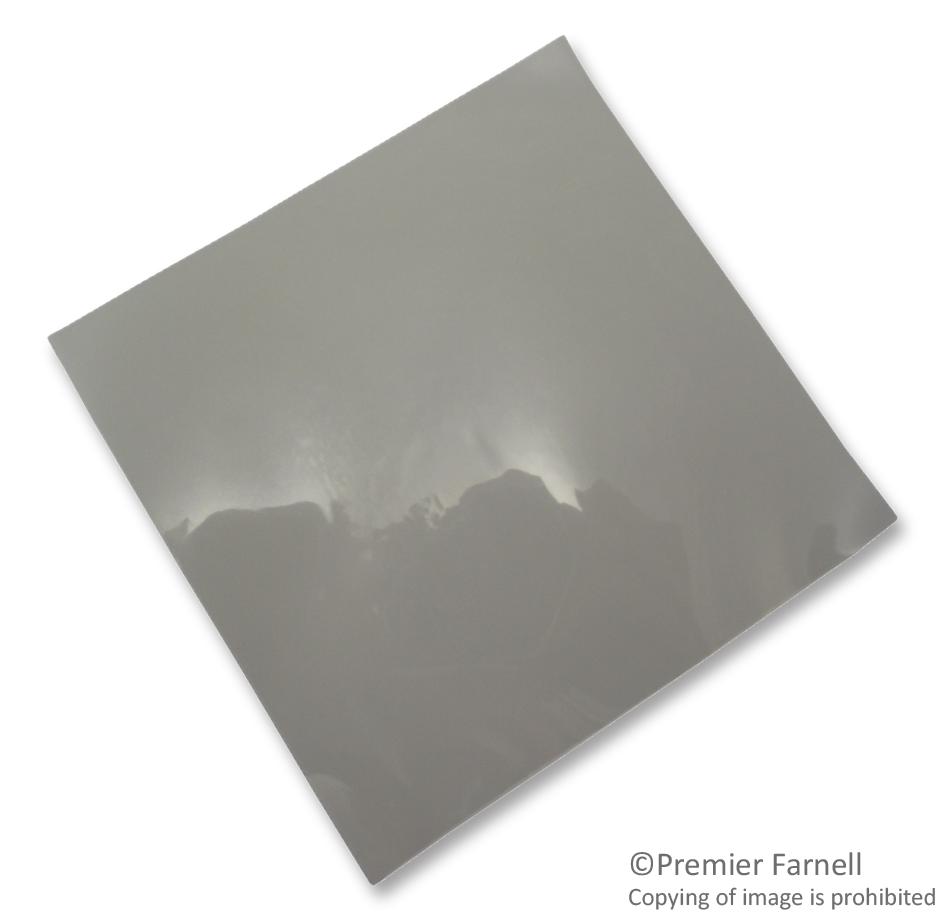

BERGQUIST - GP2000S40-0.080-02-4/4 - Thermally Conductive Material, Gap Pad, 2000S40, .080", 4" x 4" Sheet, 2 W/m.K, 2.032 mm, 0.97 °C/W

  • Thermal Conductivity: 2W/m.K
  • Conductive Material: -
  • Thickness: 2.032mm
  • Thermal Impedance: 0.97°C/W
  • Dielectric Strength: -
  • External Length: 101.6mm
  • External Width: 101.6mm
  • Product Range: -
  • SVHC: No SVHC (27-Jun-2018)
  • Breakdown Voltage Vbr: 2.5kV
  • Colour: Grey
  • Dielectric Constant: 6.0
  • External Depth: 2mm
  • Flammability Rating: UL94V-0
  • Insulator Body Material: Fibreglass
  • Isolation Voltage: 2.5kV
  • Length: 100mm
  • Material: Gap Pad 2000 S40
  • Operating Temperature Max: 200°C
  • Operating Temperature Min: -60°C
  • Operating Temperature Range: -60°C to +200°C
  • Overall Width: 100mm
  • Resistivity: 10ohm/sq
  • Rockwell Hardness: 35
  • Specific Gravity: 0.6
  • Type: Thermal Pad
  • Volume Resistivity: 10ohm-m
