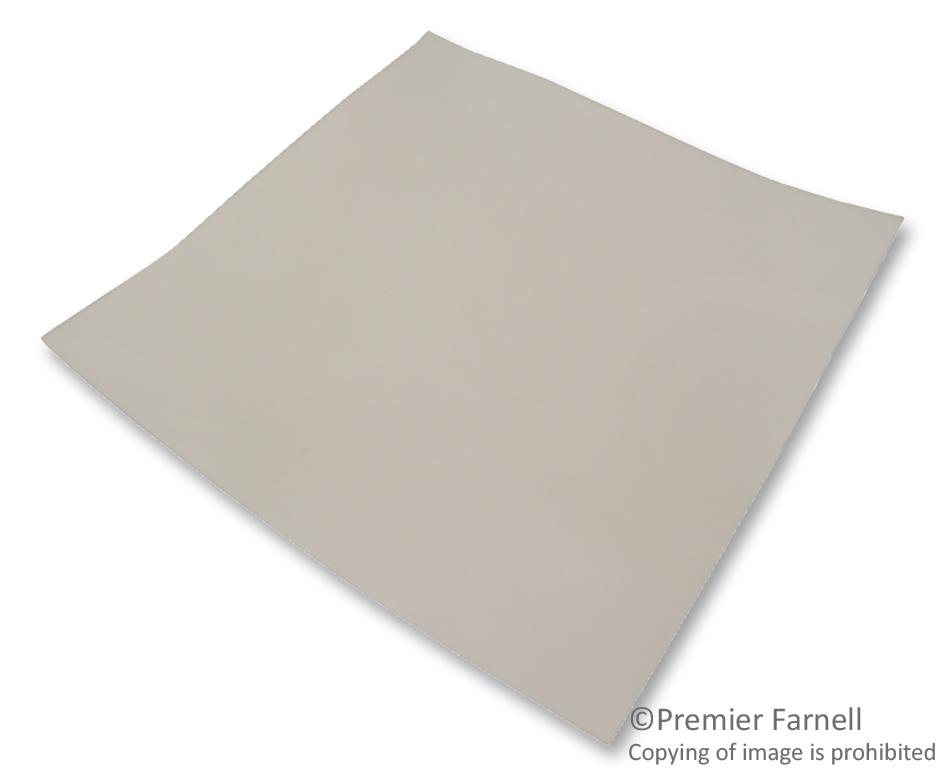

BERGQUIST - GP2500-0.040-02-0404 - Thermally Conductive Material, Gap Pad 2500, .040" 4" x 4" Sheet, 2.7 W/m.K, 1.016 mm, 0.74 °C/W
- Thermal Conductivity: 2.7W/m.K
- Conductive Material: Filled Silicone Polymer
- Thickness: 1.016mm
- Thermal Impedance: 0.74°C/W
- Dielectric Strength: -
- External Length: 101.6mm
- External Width: 101.6mm
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Breakdown Voltage Vbr: 6kV
- Colour: Brown
- Dielectric Constant: 6.8
- External Depth: 1mm
- Flammability Rating: UL94V-0
- Insulator Body Material: Gap Pad 2500 S80
- Length: 100mm
- Material: Gap Pad 2500 S80
- Operating Temperature Max: 200°C
- Operating Temperature Min: -60°C
- Operating Temperature Range: -60°C to +200°C
- Overall Width: 100mm
- Resistivity: 10ohm/sq
- Rockwell Hardness: 80
- Specific Gravity: 3.1
- Type: Thermal Pad
- Volume Resistivity: 100000Mohm-m
