GU128X64D-K610A8 VFD Module, 128x64 NORITAKE ITRON

NORITAKE ITRONUGS :GU128X64D-K610A8 Code de commande:1495424

Prix:
Prix ​​promotionnel€172,37

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (243 unité)

Documents et téléchargements

description

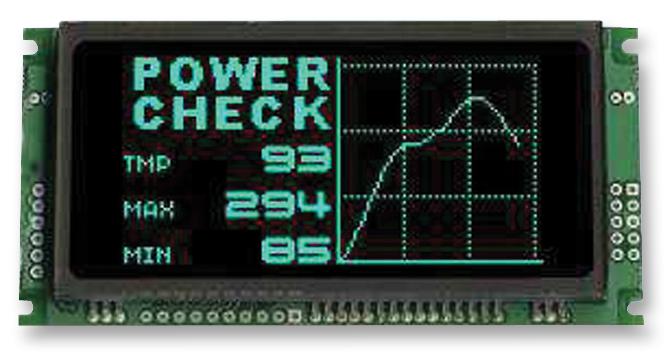

NORITAKE ITRON - GU128X64D-K610A8 - VFD Display, Dot Matrix, 128 x 64, 28.65mm x 57.45mm, I2C / Parallel / SPI, 410 mA, 4.5 V to 5.25 V

  • Resolution: 128 x 64
  • Viewing Area (H x W): 28.65mm x 57.45mm
  • Character Format: Dot Graphic
  • Supply Voltage Min: 4.5V
  • Supply Voltage Max: 5.25V
  • Supply Current: 410mA
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Interface Type: I2C, Parallel, SPI
  • Product Range: -
  • Character Size: 3.1mm
  • Display Area Depth: 28.7mm
  • Display Area Width: 56.6mm
  • Display Technology: VFD
  • External Depth: 12mm
  • External Length / Height: 47mm
  • External Width: 96mm
  • Fixing Hole Diameter: 2.5mm
  • Height: 47mm
  • No. of Characters Per Line: 128
  • No. of Lines: 64
  • Operating Temperature Range: -40°C to +85°C
  • Pitch Spacing: 0.45mm
  • Row Pitch: 0.45mm
  • Supply Voltage DC Max: 5.25V
  • Supply Voltage Range: 4.5V to 5.25V
  • Supply Voltage V DC: 5V
