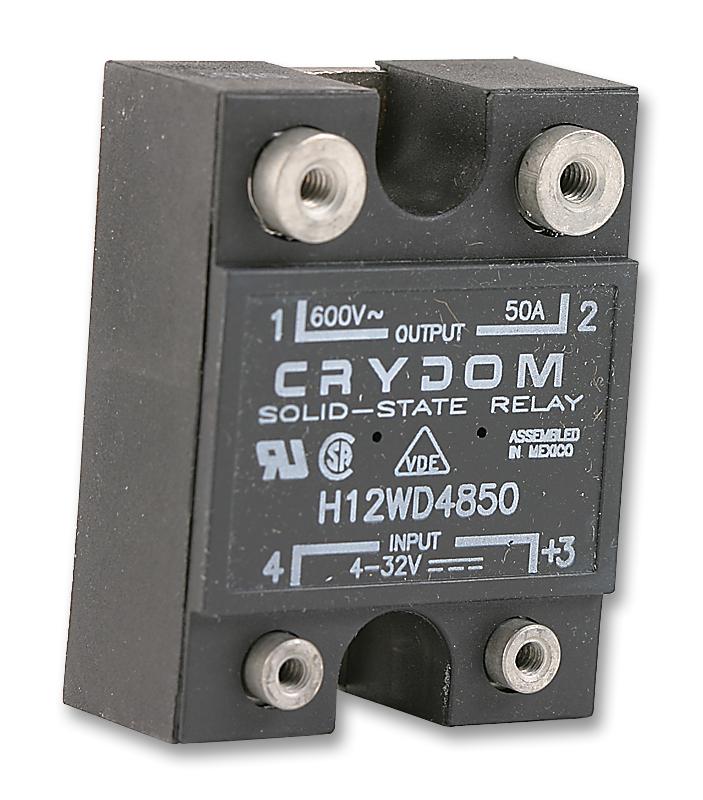

SENSATA/CRYDOM - H12WD4850 - Solid State Relay, SPST-NO, 50 A, 660 VAC, Panel Mount, Screw, Zero Crossing
- Contact Configuration: SPST-NO
- Load Current: 50A
- Operating Voltage Max: 660VAC
- Relay Mounting: Panel
- Relay Terminals: Screw
- Switching Mode: Zero Crossing
- Operating Voltage Min: 48VAC
- Control Voltage Min: 4VDC
- Control Voltage Max: 32VDC
- Product Range: H12WD Series
- SVHC: No SVHC (07-Jul-2017)
- Blocking voltage: 1200V
- Control Voltage DC Max: 32VDC
- Control Voltage DC Min: 4VDC
- Control Voltage Range: 4V DC to 32V DC
- Control Voltage Type: DC
- External Depth: 22.2mm
- External Diameter: 4.4mm
- External Length / Height: 57.2mm
- External Width: 44.4mm
- Fixing Centres: 47.6mm
- Isolation Voltage: 4kV
- Load Current Min: 150mA
- Load Current RMS Max: 50A
- Must Release Voltage: 1V
- Operating Voltage Range: 48Vrms to 660Vrms
- Output Type: Thyristor
- RMS Load Current Min: 150mA
- RMS Load Voltage Max: 660V
- RMS Load Voltage Min: 48V
- Rate of Voltage Change dv / dt: 500V/µs
- Resistance: 1500ohm
- Single Cycle Surge Current: 625A
- Surge Current: 625A
