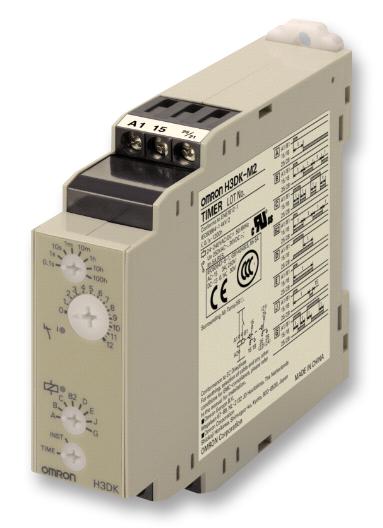

H3DK-M2A DC12 Timer, Multifunction, 5A, 12VDC Omron

OMRONUGS :H3DK-M2A DC12 Code de commande:1870031

Prix:
Prix ​​promotionnel€89,07

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (11 unité)

Documents et téléchargements

description

OMRON - H3DK-M2A DC12 - Analogue Timer, H3DK-M, Multifunction, 0.1 s, 1200 h, 8 Ranges, Solid State

  • Product Range: H3DK-M Series
  • Timer Functions: Multifunction
  • Time Min: 0.1s
  • Time Max: 1200h
  • No. of Timing Ranges: 8Ranges
  • Timer Output: Solid State
  • Supply Voltage Max: 12VDC
  • Current Rating Nom: 5A
  • Connection / Termination: Screw Terminals
  • Adjustment Type: Screwdriver Slot
  • Contact Configuration: DPDT
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 30V
  • Delay Time Range: 0.1s to 1200h
  • External Depth: 100.2mm
  • External Length / Height: 79mm
  • External Width: 22.5mm
  • Nom Input Voltage: 12VDC
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -20°C
  • Relay Mounting: DIN Rail
  • Timing Adjustment: Screwdriver Slot
  • Type: Solid State
